What is the Huawei Outdoor Antenna 4G Rubber Duck Antenna?
The Huawei Outdoor Antenna CTRF-ANTENNA-AP-7027-13200-SMA is a foldable rubber duck antenna, a 1/2 dipole antenna manufactured by C&T RF Antennas Inc. for indoor-outdoor applications.
It has a 13x197mm size antenna radome, SMA male standard connector, 4/6dBi high-gain, Huawei 4G antenna full-band cover 2G/3G/4G LTE Cellular NB-IoT band antenna.
The CTRF-ANTENNA-AP-7027-13195-SMA 1/2 dipole antenna, Huawei 4G Outdoor Antenna Rubber Duck Antenna, is supplied by C&T RF Antennas Inc., a Chinese AP router antenna manufacturer.
The rubber ducky Huawei 4G Outdoor Antenna can be changed to Lora 433Mhz antenna, Lora 868Mhz antenna, Lora 915Mhz antenna, passive GPS antenna, 2.4G wifi antenna, 5.8G wifi antenna, GSM antenna, NB-IoT antenna, etc.
The High-performance Huawei Outdoor Antenna 4G Rubber Duck Antenna is provided by C&T RF Antennas Inc., the RF antenna manufacturer in China. We provide many antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antenna, Yagi Antenna, etc.
C&T RF Antennas Inc provides the RF antenna with many antenna frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc provides RF wireless antennas for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
Contact us for more details on the Huawei Outdoor Antenna 4G Rubber Duck Antenna, including its datasheet, pricing, and inventory.
Or other indoor-outdoor Antenna 4G Rubber Duck Antenna styles.
Huawei Outdoor 4G Antenna Rubber Duck Antenna Specifications
Huawei Outdoor 4G Antenna Rubber Duck Antenna Electrical Specifications | |
| RF Antenna Type | Rubber Duck Antenna |
| Model | CTRF-ANTENNA-AP-7027-13200-SMA |
| Frequency Range | 698-960, 1710-2700MHz |
| Gain | 4/6dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Verticle |
| Directional | Omnidirectional |
| Connector | SMA Male |
| Max Power | 50W |
| Lightning Protection | DC-Ground |
Huawei Outdoor 4G Antenna Rubber Duck Antenna Mechanical Specifications | |

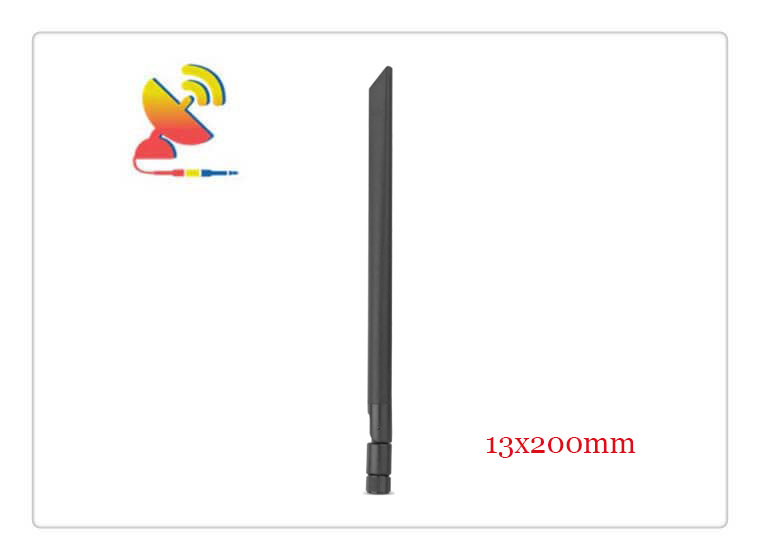

| Dimension | 13*200mm |
| Weight | Approx.22g |
| Radome Material | Plastic ABS |
| Operation Temperature | -20˚C ~ +80˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Mounting | SMAConnector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M/NB-IoT/LoRa, 2G 3G 4G LTE/LTE-IoT/LTE-M/LTE-Cat, GSM GPRS UMTS PCS, etc. |
Huawei Outdoor Antenna 4G Rubber Ducky Antenna Features
Huawei Outdoor Antenna 4G Rubber Duck Antenna Applications
