This product is Amazing

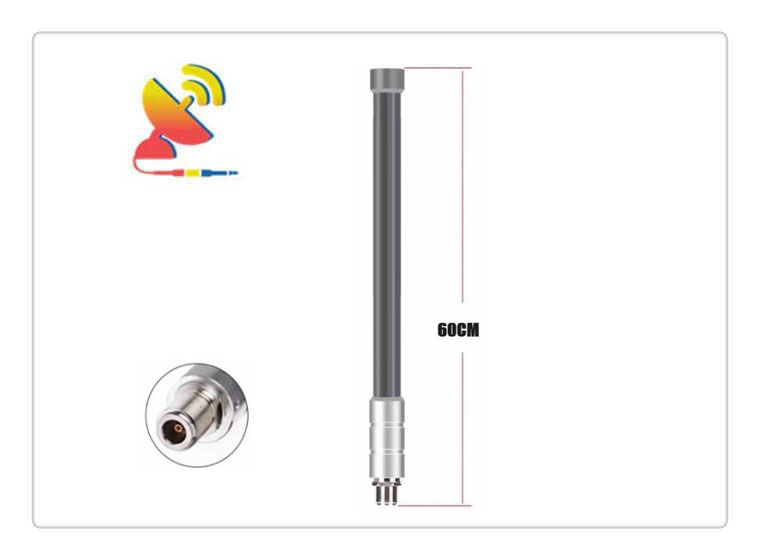

High-gain 8 dBi Lora Antenna 915 MHz

20x600mm 8 dBi Antenna 915 MHz 8 dBi Lora Antenna 868 8dBi Lora 8dBi Antenna - C&T RF Antennas Manufacturer

8 dBi Lora Antenna 915 MHz Manufacturer

C&T RF Antennas Inc is the High-gain 8 dBi Lora Antenna 915 MHz Fiberglass Antenna Manufacturer, we provide external and internal Lora & Lorawan antennas with many antenna types.

Contact the C&T RF sales team for more High-gain 8 dBi Lora Antenna 915 MHz Omni fiberglass antenna details.

What is A High-gain 8 dBi Lora Antenna 915 MHz?

The High-gain 8 dBi Lora Antenna 915 MHz Omni Fiberglass Antenna CTRF-ANTENNA-FB-0915-20600-NM is an 868MHz/8 dBi Gain Omni Lora antenna 915MHz/8 dBi gain Omni Lora glass fiber antenna manufactured by C&T RF Antennas Inc for Lora applications.

What is the networking architecture of Lora?

The most important feature of LoRa is the physical layer or radio modulation that creates long-range communication connections, which is based on CSS modulation (Chirp Spread Spectrum).

Compared to traditional modulation techniques such as ASK and FSK, LoRa can greatly increase the communication range and CSS is characterized by long transmission distances and high interference resistance.

LoRa and LoRaWAN have better link budgets than other standard communication technologies, and a single gateway or base station can cover a large area, depending on the environment and interference at the location used.

LoRa is one of the popular technologies designed specifically for IoT wireless transmission and the LoRa network specification has the LoRa physical layer technology and the LoRAWAN open layer protocol.

How LoRaWAN works?

At the most basic level, wireless protocols like LoRaWAN are fairly simple. LoRaWAN is a star or star-to-star topology and is generally considered better than mesh networks because of its advantages in keeping batteries charged and increasing communication range.

Specifically, the star topology relays messages through gateways to a central server, with each end node transmitting data to multiple gateways. The gateways then forward the data to a web server where redundancy detection, security checks, and message scheduling are performed.

Two distinct advantages of this design are.

1. Simpler tracking:

Since the end nodes send data to multiple gateways, gateway-to-gateway communication is not required. This simplifies the logic of the end-node mobile tracking application.

2. Better public networks:

This non-pairwise relationship allows a central server to resolve collisions, so LoRaWAN may be better suited for deployment on public networks.

Almost all LPWAN systems (including LoRaWAN) have multiple receive channels, and most LoRaWAN systems can receive eight messages simultaneously on any number of frequency channels.

The Outdoor Antenna 8 dBi Lora Antenna Omni Fiberglass Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China.

C&T RF Antennas Inc provides the 15dBi Lora antenna11dBi Lora Antenna12dBi Lora antenna20dBi Lora antenna10dBi Lora antenna9dBi Lora antenna8dBi Lora antenna6dBi Lora antenna5.8dBi Lora antenna5dBi Lora antenna4dBi Lora antenna3dBi Glass Fiber Lora Antenna3dBi Lora antenna2.5dBi Lora antenna2dBi Lora antenna, etc.

We provide Lora antenna with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

The High-gain 8 dBi Lora Antenna 915 MHz Fiberglass Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers 8 dBi Lora Antenna Fiberglass Antenna inventory, 8 dBi Lora Antenna Fiberglass Antenna pricing, & 8 dBi Lora Antenna Fiberglass Antenna datasheets or the other Lora antenna types.

High-gain 8 dBi Lora Antenna 915 MHz Fiberglass Antenna Specifications

High-gain 8 dBi Lora Antenna 915 MHz Antenna Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-0915-20600-NM
Frequency Range900-930MHz
Gain8dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

High-gain 8 dBi Lora Antenna 915 MHz Antenna Mechanical Specifications

Dimension20*600mm
WeightApprox. 260g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa



Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc





Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc



How do you mount a LoRa antenna?

Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
