This product is Amazing

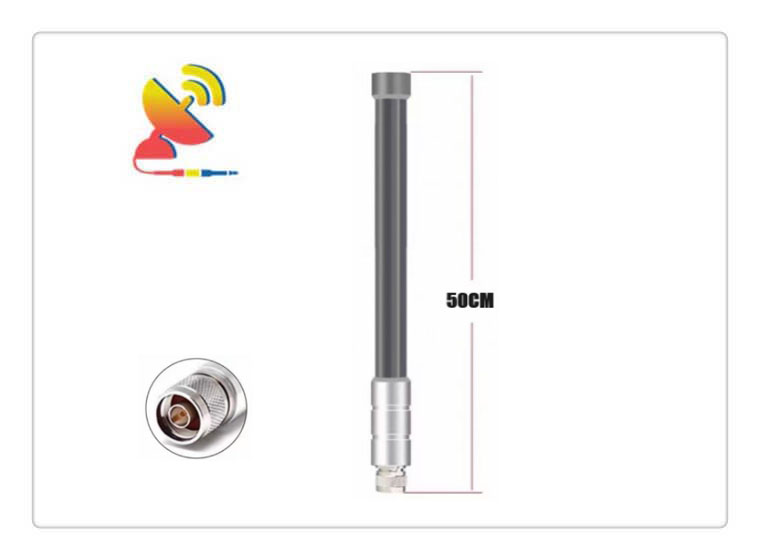

915MHz Omni Antenna Lora Enhanced Antenna

C&T RF Antennas Inc - Lora Fiberglass Antenna 860-930MHz 5dBi 915MHz Lora Fiberglass Antenna Best Lora Antenna 868 915MHz Omni Antenna 915MHz Fiberglass Antenna

915MHz Omni Antenna Manufacturer

C&T RF Antennas Inc is the outdoor 915MHz Omni Antenna Lora Enhanced Antenna 5dBi Antenna Manufacturer, we provide external and internal Lora & Lorawan antennas with many antenna types.

Contact the C&T RF sales team for more 915MHz Omni Antenna Lora Enhanced Antenna details.

What is a 915MHz Omni Antenna Lora Enhanced Antenna?

The 915MHz Omni Antenna Lora Enhanced Antenna CTRF-ANTENNA-FB-0915-20260-N-5DBI is a 5dBi LoRa Antenna 915MHz Indoor-outdoor Omni-directional Antenna Lora glass fiber antenna manufactured by C&T RF Antennas Inc for outdoor Lora & LoraWan node and gateways.

The Lora fiberglass antenna 915 MHz Omni Antenna Lora Enhanced Antenna also can be changed to an N-type female connector for your selection.

Besides US915 MHz Omni Antenna Lora Enhanced Antenna, this type of antenna also has a EU868 MHz antenna frequency, or 850-930 Mhz Lora radiofrequency for your best choice.



In LoRa mode, how is it possible to receive an incorrect packet when a cyclic redundancy check (CRC) is enabled?

In LoRa mode, the payload is added to the FIFO even if the CRC is incorrect.

The PayloadCrcError bit must be checked to know its integrity before the payload is obtained. In Explicit Header mode, there is a small possibility that a false detection produces a “cloned” packet.

Either the wrong header turns on the CrcOn bit, then the payload will be wrong and the modem will mark it as a PayloadCrcError condition, so the packet is easily filtered out.

Either the error header disables the CrcOn bit, in which case the mode considers the packet to be good. These occasional bad packets will have a random length (extracted from the error header information) and are easily filtered out by the host, for example by seeing the abnormal size.



The 5dBi 915MHz Omni Antenna Lora Enhanced Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China.

C&T RF Antennas Inc provides the 15dBi Lora antenna11dBi Lora Antenna12dBi Lora antenna20dBi Lora antenna10dBi Lora antenna9dBi Lora antenna8dBi Lora antenna6dBi Lora antenna5.8dBi Lora antenna5dBi Lora antenna4dBi Lora antenna3dBi Glass Fiber Lora Antenna3dBi Lora antenna2.5dBi Lora antenna2dBi Lora antenna, etc.

C&T RF Antennas Inc provides Lora antenna with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

The 5dBi 915MHz Omni Antenna Lora Enhanced Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers 915MHz Omni Antenna inventory, 915MHz Omni Antenna pricing, 915MHz Omni Antenna datasheets or the other Lora antenna types.

5dBi 915MHz Omni Antenna Lora Enhanced Antenna Specifications

915MHz Omni Antenna Lora Enhanced Antenna Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-0915-20260-N-5DBI
Frequency Center915 MHz
Gain5 dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

915MHz Omni Antenna Lora Enhanced Antenna Mechanical Specifications

Dimension20*260mm
WeightApprox. 220g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa

Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc





Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc



How do you mount a LoRa antenna?

Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



RF Lightning Arrestors RF Surge Arrestors RF Coaxial Lightning Arrestors - C&T RF Antennas Inc
RF Lightning Arrestors RF Surge Arrestors RF Coaxial Lightning Arrestors – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
