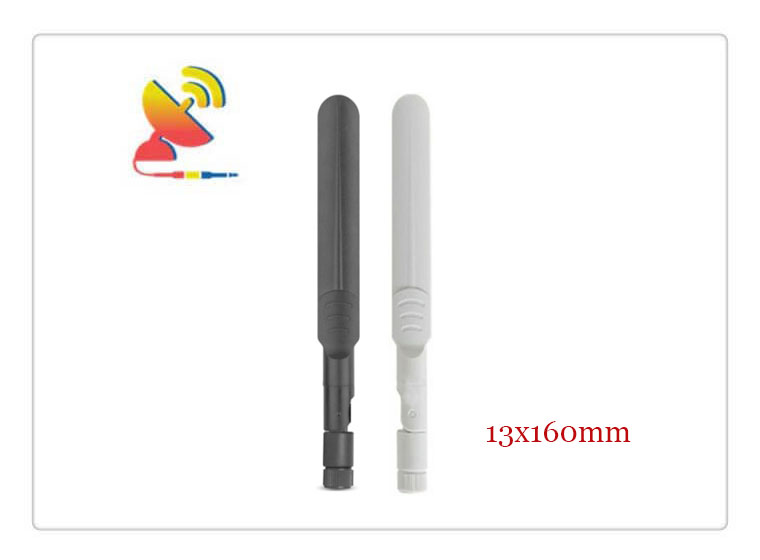

Dual Band Dipole Antenna

Dual Band Dipole Antenna Rubber Duck Antenna Wifi Rubber Duck Wifi Antenna

Dual Band Dipole Antenna Manufacturer

C&T RF Antennas Inc is the rubber duck antenna Dual Band Dipole Antenna Manufacturer, we provide the dual-band wifi antenna with other antenna types.

contact the C&T RF sales team for more single-band & dual-band wifi antenna details.

What is a Dual Band Dipole Antenna

The Omni dipole antenna designed dual-band wifi antenna CTRF-ANTENNA-AP-2458-13195-SMA is an omnidirectional antenna rubber duck antenna type. It is a Dual-band dipole 2.4/5.8GHz Antenna 5dbi 6dBi wifi antenna SMA connector for wireless Lan network Antenna.

The dual wifi antenna has a standard SMA (M) connector and also provides high gain, tilt, and swivel functions for full flexibility.

The antenna structure is designed for robust handling and the housing is made with plastic ABS giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement.

In the same rubber duck antenna radome we have the 433Mhz antenna868Mhz antenna915Mhz antenna3G antenna4G antennaGPS antenna,  2.4GHz wifi antenna, Dual-band wifi antenna, etc.

The Dual Band Dipole Antenna is provided by C&T RF Antennas Inc, the professional dual-band antenna dipole antenna manufacturer in China. contact us for more antenna details on the Dual-Band Dipole Antenna such as datasheet, pricing, and dual-band wifi antenna inventory.

Or other dual-band wifi antenna styles.

Dual-Band Dipole Antenna Specifications

Dual-Band Dipole Antenna Electrical Specifications

RF Antenna TypeRubber Duck Antenna
ModelCTRF-ANTENNA-AP-2458-13195-SMA
Frequency Range2400-2500MHz, 5150-5800MHz
Gain5/6dBi
VSWR≤2.0
Impedance50 Ω
PolarizationVerticle
DirectionalOmnidirectional
ConnectorSMA Male
Max Power50W
Lightning ProtectionDC-Ground

Dual-Band Dipole Antenna Mechanical Specifications

Dimension13*195mm
WeightApprox.25g
Radome MaterialPlastic ABS
Operation Temperature-20˚C ~ +80˚C
Storage Temperature-40˚C ~ +85˚C
ColorBlack
Antenna DesignDipole Array
MountingSMAConnector
Safety Emission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox, etc.
