What is an Embedded Flexible PCB Antenna WiFi 2.4 GHz?
The Embedded Flexible PCB Antenna WiFi 2.4 GHz CTRF-ANTENNA-FPC-2450-3511-IPEX-L is a 2.4 -2.5 GHz flexible printed circuit (FPC) embedded antenna manufactured by C&T RF Antennas Inc. It is an ultra-miniature PCB antenna working on the 2.4 GHz band for Wi-Fi®, Bluetooth®, and ISM applications.

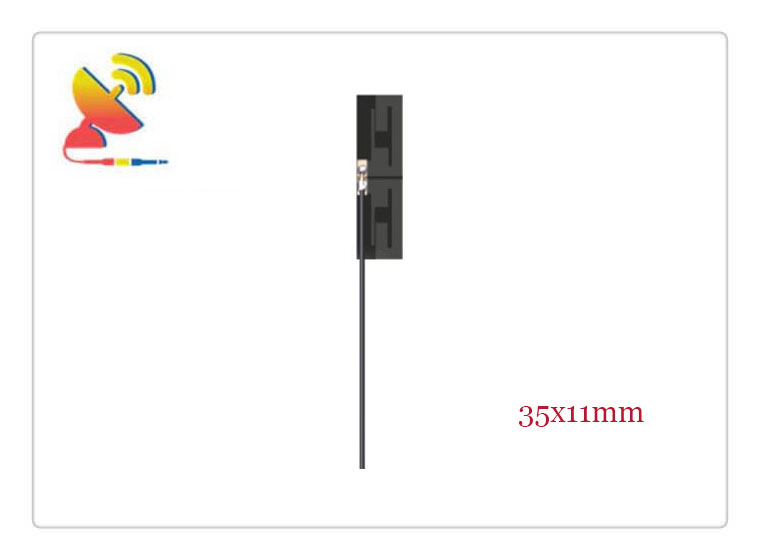

The Embedded Flexible PCB Antenna WiFi 2.4 GHz consists of a robust flexible PCB board antenna and an RG 1.13 coaxial cable. At a 35 mm × 11 mm board size. It has been specially developed to fit into small spaces and still deliver optimum performance. The cable and connector are fully customizable.
Features of the Embedded Flexible PCB Antenna WiFi 2.4 GHz
High efficiency
Ground plane independent
Performance at 2.4 GHz to 2.5 GHz
VSWR: 1.8
Peak Gain: 3.2 dBi
Efficiency: 76%
IPEX1/MHF1/U.FL compatible plug termination
etc.
C&T RF Antennas Inc. provides antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, Yagi antennas, etc.
C&T RF Antennas Inc. provides internal and external IoT & M2M antennas with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc. provides single-band, dual-band, and multi-band antennas for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
The Embedded Flexible PCB Antenna WiFi 2.4 GHz Antenna is manufactured by C&T RF Antennas Inc., a China 2.4 GHz WiFi antenna manufacturer; Contact us for more indoor-outdoor 2.4 GHz antenna styles you need.
Embedded Flexible PCB Antenna WiFi 2.4 GHz Specifications
Embedded Flexible PCB Antenna WiFi 2.4 GHz Electrical Specifications | |
| RF Antenna Type | Embedded FPC Antenna |
| Model | CTRF-ANTENNA-FPC-2450-3511-IPEX-L |
| Frequency | 2400-2500 MHz |
| Gain | 3dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Linear Polarization |
| Cable Type | RG1.13 |
| Connector | U.FL/IPEX |
| Cable Length | 130mm |
| Lightning Protection | DC-Ground |
Embedded Flexible PCB Antenna WiFi 2.4 GHz Mechanical Specifications | |
| FPC Board Dimension | 35*11mm |
| Weight | Approx. 5g |
| Material | Flexible PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Mounting | Connector/Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox, etc |
Flexible Antenna FPCB Antenna Features
Flex PCB Antenna FPC Antenna Applications
