What is a High-Gain 8dBi WiFi PCB Antenna 2.4 GHz?

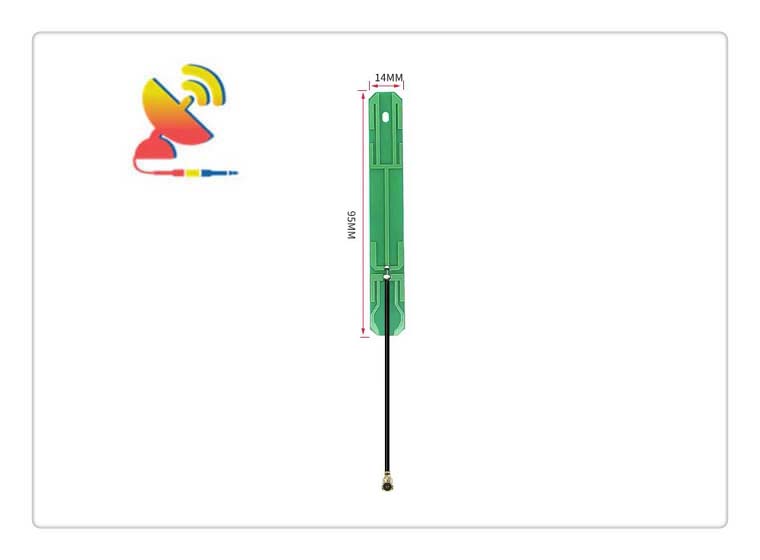

The High-gain 8dBi WiFi PCB Antenna 2.4 GHz CTRF-ANTENNA-PCB-2450-9514-IPEX item is an 8dbi high-gain, a 95x14mm PCB board size Wi-Fi antenna 2.4 GHz, single-band antenna manufactured by C&T RF Antennas Inc.
The High-gain 8dBi WiFi PCB Antenna 2.4 GHz operates in the 2,400–2,500 MHz Industrial, Scientific, and Medical (ISM) band to support Bluetooth, Wi-Fi, and Zigbee devices.
Features of High-Gain 8dBi WiFi PCB Antenna 2.4 GHz
95 x 14 mm printed circuit board size;
RG 1.13 cable antenna extension;
Sticker 3m-type mouting
2.4-2.5 GHz ISM band antenna;
8dBi High-gain;
Rigid PCB antenna
etc.
The High-Gain 8dBi WiFi PCB Antenna 2.4 GHz is manufactured by C&T RF Antennas Inc., the single-band Wi-Fi antenna manufacturer, and dual-band Wi-Fi antenna supplier in China.
C&T RF Antennas Inc. provides different antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, Yagi antennas, etc.
C&T RF Antennas Inc. provides the internal-external antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wi-Fi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc. provides single-band, dual-band, and multi-band antennas such as 3in1 combination antennas 4G/GPS/Wifi antennas, 2in1 4G/GPS antennas, GSM/GPS antennas, 4G/Wifi antennas, GPS/Wifi antennas, etc. for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
Contact us for more details on the High-Gain 8dBi WiFi PCB Antenna 2.4 GHz such as 2.4 GHz PCB antenna datasheet, 8dBi WiFi antenna pricing, and 8dBi 2.4 GHz WiFi antenna inventory, etc.
Or other Wi-Fi antenna types.
High-Gain 8dBi WiFi PCB Antenna 2.4 GHz Specifications
High-Gain 8dBi WiFi PCB Antenna 2.4 GHz Electrical Specifications | |
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-2450-9514-IPEX-G |
| Frequency | 2400-2500 MHz |
| Gain | 8dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Linear |
| Cable Type | RG1.13 |
| Connector | U.FL/IPEX |
| Cable Length | 100/130 mm |
| Lightning Protection | DC-Ground |
High-Gain 8dBi WiFi PCB Antenna 2.4 GHz Mechanical Specifications | |
| PCB Board Dimension | 95*14mm |
| Weight | Approx. 5g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Dipole Array |
| Mounting | Connector/Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox/WiMAX, etc |
High-performance Embedded PCB Antenna Features
High-performance Wifi PCB Antenna Applications
