What is a High-Gain LTE 4G Cellular Flexible PCB Antenna?
The high-gain LTE 4G cellular flexible PCB antenna item CTRF-ANTENNA-FPC-7027-9514-IPEX antenna is an 8/10dBi high-gain 4G LTE cellular flexible PCB antenna manufactured by C&T RF Antennas Inc. It enables designers to use only one antenna that covers all common LTE frequencies.
The high-gain LTE 4G cellular flexible PCB antenna is a flexible antenna for the 4G LTE bands: LTE 700, GSM 850, GSM900 DCS1800, PCS1900, WCDMA2100, LTE B7 (2500- 2690MHz), LTE B40 (2300- 2400MHz).
Features of the High-Gain LTE 4G Cellular Flexible PCB Antenna
A flexible polymer antenna

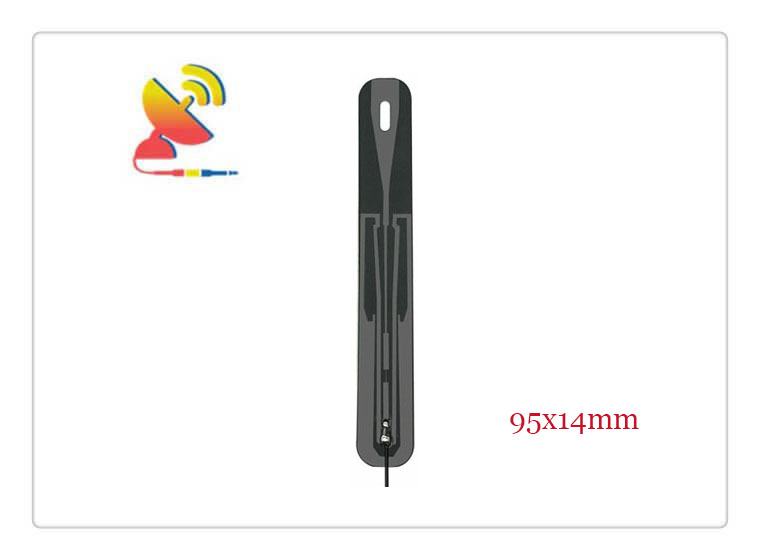

Ultra-thin 95*14*0.18mm size
Wideband 698- 2700MHz frequency
High efficiencies across the bands
Peel-and-stick adhesive
etc.
C&T RF Antennas Inc., a Chinese indoor-outdoor 4 G/LTE antenna manufacturer, supplies high-gain LTE 4G cellular flexible PCB antennas.
C&T RF Antennas Inc. provides various antenna types, including Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, and Yagi antennas.
C&T RF Antennas Inc provides the internal-external wireless antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc provides single-band, dual-band, and multi-band antennas such as 3in1 combination antennas 4G/GPS/Wifi antennas, 2in1 4G/GPS antennas, GSM/GPS antennas, 4G/Wifi antennas, GPS/Wifi antennas, etc. for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
Contact the C&T RF sales team for more details on the high-gain LTE 4G cellular flexible PCB antenna, such as the 4G/LTE antenna datasheet, cellular flexible PCB antenna inventory, or the other types of 2G/3G/4G LTE antennas.
High-Gain LTE 4G Cellular Flexible PCB Antenna Specifications
High-Gain LTE 4G Cellular Flexible PCB Antenna Electrical Specifications | |
| RF Antenna Type | Embedded Flexible PCB Antenna |
| Model | CTRF-ANTENNA-FPC-7027-9514-IPEX |
| Frequency Range | 698-960 MHz; 1710-2700 MHz |
| Gain | 8/10dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC-Ground |
High-Gain LTE 4G Cellular Flexible PCB Antenna Mechanical Specifications | |
| Dimension | 95*14mm |
| Weight | Approx. 8g |
| Material | Flexible PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, M2M/IoT/NB-IoT/LoRa, LTE-M/Cat-M, 2G/3G/4G/LTE/UMTS/GSM/GPRS, etc |
High-gain LTE 4G Cellular Flexible PCB Antenna Features
High-performance RF Antenna Applications
