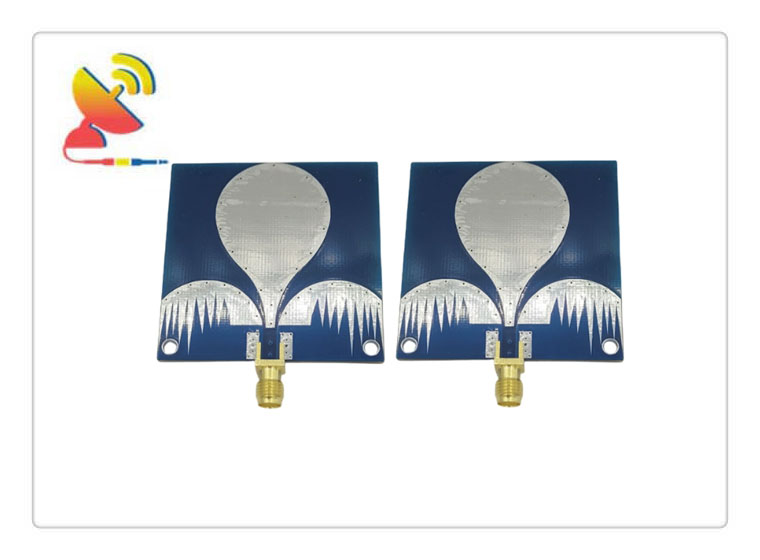

What is a 2-7GHz PCB Ultra WideBand Antenna?
The high-performance 2-7GHz PCB ultra wideband antenna style CTRF-ANTENNA-PCB-200700-5050-SMAK antenna item is a printed circuit board trace board antenna with a 2GHz to 7 GHz UWB Ultra-wideband antenna PCB antenna manufactured by C&T RF Antennas Inc.
The high-performance 2-7GHz PCB ultra-wideband antennas are designed for use with all major 2-7GHz UWB frequency channels. A UWB system is made up of a UWB antenna plus a UWB module.
The high-performance 2-7GHz PCB ultra wideband antenna is supplied by C&T RF Antennas Inc., the professional UWB omnidirectional antenna and directional UWB antenna manufacturer in China.
We provide the RF wireless antenna with many antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antenna, Yagi antennas, etc.
C&T RF Antennas Inc provides the indoor-outdoor antenna with many antenna frequencies such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
Contact us for more high-performance 2-7GHz PCB ultra wideband antenna details, such as 2-7GHz PCB UWB Patch antenna datasheet, UWB PCB antenna pricing, UWB antenna inventory, or other UWB PCB Antenna styles.
High-performance 2-7GHz PCB Ultra WideBand Antenna Specifications
High-performance 2-7GHz PCB Ultra WideBand Antenna Electrical Specifications | |
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-200700-5050-SMAK |
| Frequency Center | 2000-7000 MHz |
| Gain | 6/8dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Verticle |
| Directional | Omnidirectional |
| Connector | SMA Female |
| Max Power | 20W |
| Lightning Protection | DC-Ground |
High-performance 2-7GHz PCB Ultra WideBand Antenna Mechanical Specifications | |
| Dimension | 50x50mm |
| Weight | Approx. 10g |
| Radome Material | Printed Circuit Board |
| Operation Temperature | -20˚C ~ +80˚C |
| Storage Temperature | -40˚C ~ +85˚C |
| Color | Blue |
| Antenna Design | Dipole Array |
| Mounting | SMA Female Connector |
| SafetyEmission and other | RoHS Compliant |
| Applications | ISM/LoRa/IoT/M2M, Wifi, GPS, 4G LTE, 5G NR, 6G, 7G, etc. |
