What is an 868 MHz LoRa PCB Antenna?

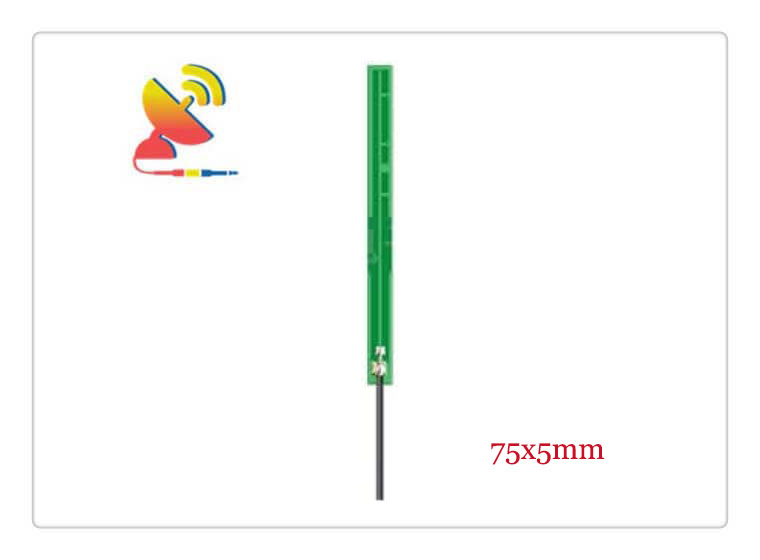

The high-performance 868 MHz LoRa PCB antenna, item CTRF-ANTENNA-PCB-0868-7505-IPEX, is an internal 868 MHz center frequency band PCB antenna manufactured by C&T RF Antennas Inc. for internal IoT node/gateway device applications.
The high-performance 868 MHz LoRa PCB antenna is a low-profile antenna, suitable for all LoRa and LoRaWAN end devices. It comes with an IPEX/u.FL/MHF1 connector for easy attachment. A 4dBi gain, 75x5mm compact size, self-adhesive type for an easy mount to the devices.
Features of high-performance 868 MHz LoRa PCB antenna
Compact-size antenna
Low-profile antenna
Internal PCB antenna
IPEX connector cable antenna
ISM/LoRa embedded antenna
Omni pattern antenna
etc.
The high-performance 868 MHz LoRa PCB antenna is manufactured by C&T RF Antennas Inc., the internal & external 868 MHz antennas manufacturer in China.
We provide Lora antennas in many different types, such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
Contact us for more details on the high-performance 868 MHz LoRa PCB antenna, such as the 868 MHz LoRa antenna datasheet, 868 MHz PCB antenna pricing, antenna inventory, etc.
Or the other internal & external 868 MHz antenna types.
High-performance 868 MHz LoRa PCB Antenna Specifications
High-performance 868 MHz LoRa PCB Antenna Electrical Specifications | |
| RF Antenna Type | Built-in PCB Antenna |
| Model | CTRF-ANTENNA-PCB-0868-7505-IPEX |
| Frequency Center | 868 MHz |
| Gain | 4±1dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤1.8 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Cable Length | 130mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC-Ground |
High-performance 868 MHz LoRa PCB Antenna Mechanical Specifications | |
| PCB Board Dimension | 75*5mm |
| Weight | Approx. 5g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, LoRaWan, Zigbee, etc. |
High-performance PCB antenna features
