What is a Passive GPS Ceramic Antenna IPEX Antenna?
The high-performance ceramic antenna GPS passive CTRF-ANTENNA-GPS-1575-181804 item is a passive GPS antenna ceramic patch antenna with a 1575.42MHz/1561MHz frequency antenna manufactured by C&T RF Antennas Inc. for GPS/Beidou positioning applications.

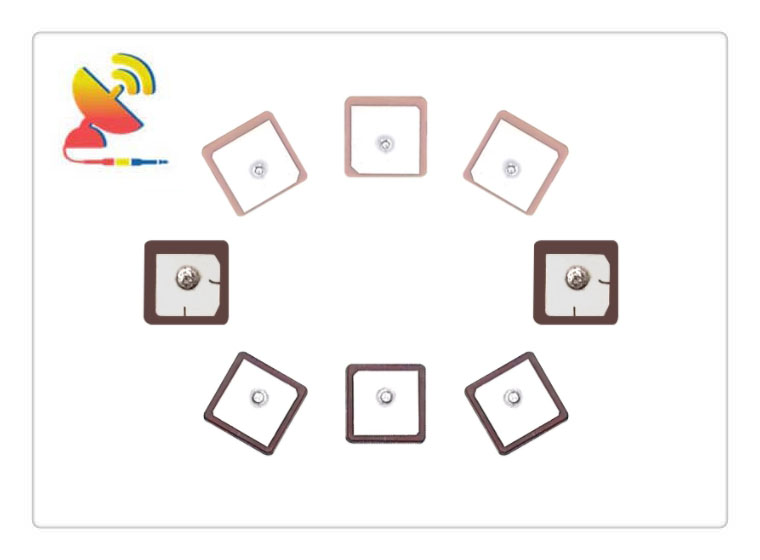

The CTRF-ANTENNA-GPS-1575-181804 model comes with an 18*18mm size and a 4mm thickness, no cable length, and no IPEX connector, a passive GPS antenna. It also has a 2mm thickness style for your device.
The high-performance ceramic antenna GPS passive built-in antenna is manufactured by C&T RF Antennas Inc., the passive GPS antenna manufacturer and active GPS antenna supplier in China.
Contact us for more details on the high-performance ceramic antenna GPS passive, such as ceramic antenna datasheet, GPS antenna pricing, passive GPS antenna inventory, etc.
Or the other GPS antenna types.
High-performance Ceramic Antenna GPS Passive Specifications
High-performance Ceramic Antenna GPS Passive Electrical Specifications | |
| RF Antenna Type | GPS Patch Antenna |
| Model | CTRF-ANTENNA-GPS-1575-181804 |
| Frequency | 1575.42MHz/1561MHz |
| Gain | 2dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Right-Hand Circular Polarization |
| DC voltage | 3-5V |
| DC | 5-10mA |
| Humidity | 25°C to 95% |
High-performance Ceramic Antenna GPS Passive Mechanical Specifications | |
| Dimension | 18x18x4mm |
| Weight | Approx. 20g |
| Material | Ceramic |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +70˚C |
| Color | White |
| Antenna Form | Passive |
| Mounting | Screw |
| Safety, Emission, and other | RoHS Compliant |
| Applications | GPS/Beidou |

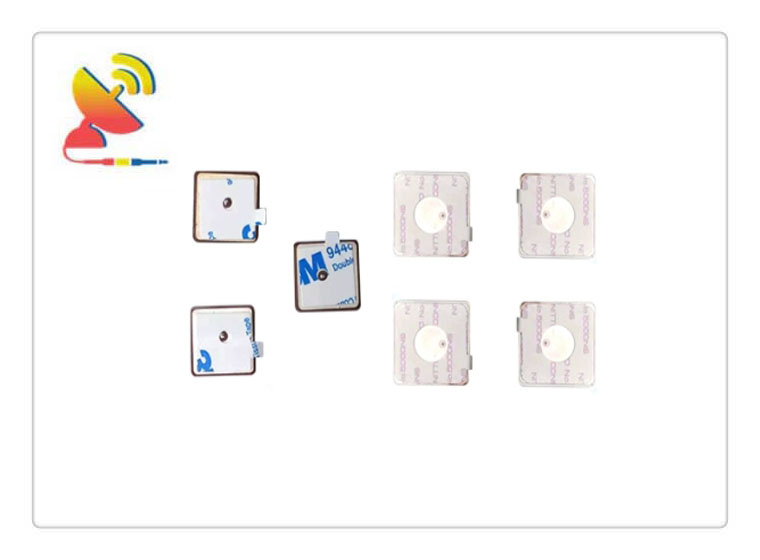

Other Passive Ceramic GPS antenna specifications

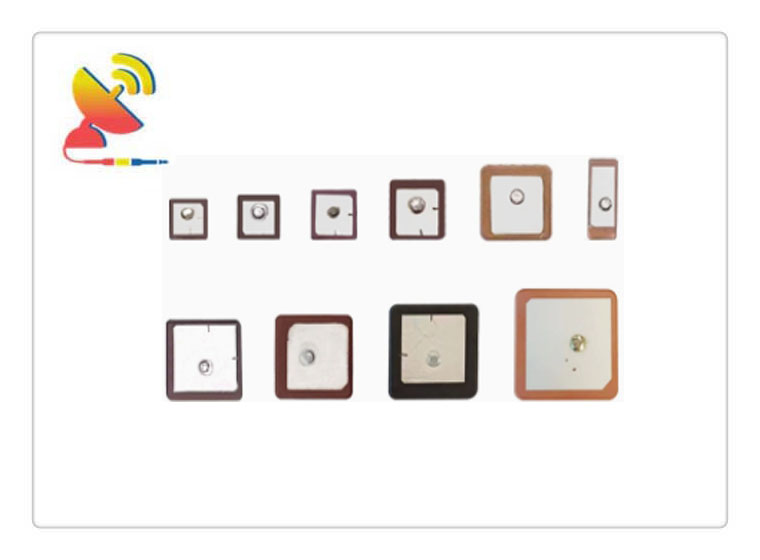

We have below passive ceramic GPS antenna sizes for your best choice.
16*6*2mm passive GPS ceramic antenna
16*6*4mm passive GPS ceramic antenna
20*6*2mm passive GPS ceramic antenna
20*6*4mm passive GPS ceramic antenna
15*15*2mm passive GPS ceramic antenna
15*15*4mm passive GPS ceramic antenna
18*18*2mm passive GPS ceramic antenna
18*18*4mm passive GPS ceramic antenna
25*25*2mm passive GPS ceramic antenna
25*25*4mm passive GPS ceramic antenna
etc.
Besides the passive GPS ceramic antennas, we also have the active GPS ceramic antennas for your choice.
8*8mm active GPS ceramic antenna
10*10mm active GPS ceramic antenna
12*12mm active GPS ceramic antenna
15*15mm active GPS ceramic antenna
18*18mm active GPS ceramic antenna
20*20mm active GPS ceramic antenna
25*25mm active GPS ceramic antenna
35*35mm active GPS ceramic antenna
16*6mm active GPS ceramic antenna
19*6mm active GPS ceramic antenna
etc.
