What is an ISM 868 MHz PCB Antenna?

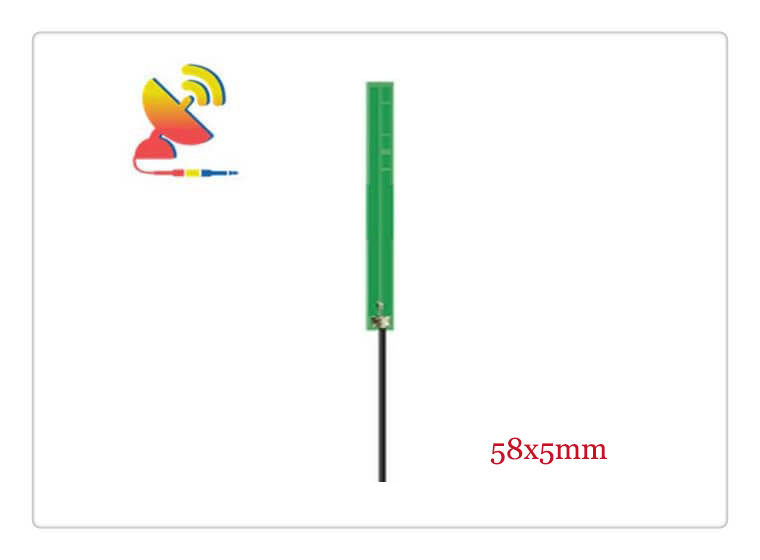

The high-performance ISM 868 MHz PCB antenna, item CTRF-ANTENNA-PCB-0868-5805-IPEX, is an internal PCB antenna design printed circuit board antenna with a 58x5mm PCB board size 868 MHz antenna manufactured by C&T RF Antennas Inc. for internal ISM/LoRa band device applications.
Features of high-performance ISM 868 MHz PCB antenna
4dBi gain antenna
Low-profile antenna
Internal PCB antenna
RG 1.13 mini coaxial cable antenna
868MHz ISM/LoRa antenna
Omni-directional antenna
etc.
The high-performance ISM 868 MHz PCB antenna is manufactured by C&T RF Antennas Inc., the internal & external 868 MHz antennas manufacturer in China.
We provide Lora antennas in many different types, such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
Contact us for more details on the high-performance ISM 868 MHz PCB antenna, such as the 868 MHz ISM antenna datasheet, 868 MHz antenna pricing, antenna inventory, etc.
Or the other 868 MHz antenna types.
High-performance ISM 868 MHz PCB Antenna Specifications
High-performance ISM 868 MHz PCB Antenna Electrical Specifications | |
| RF Antenna Type | Built-in PCB Antenna |
| Model | CTRF-ANTENNA-PCB-0868-5805-IPEX |
| Frequency Center | 868 MHz |
| Gain | 4±1dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤1.8 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Cable Length | 130mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC-Ground |
High-performance ISM 868 MHz PCB Antenna Mechanical Specifications | |
| PCB Board Dimension | 58*5mm |
| Weight | Approx. 4g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, LoRaWan, Zigbee, etc. |
High-performance PCB antenna features
