This product is Amazing

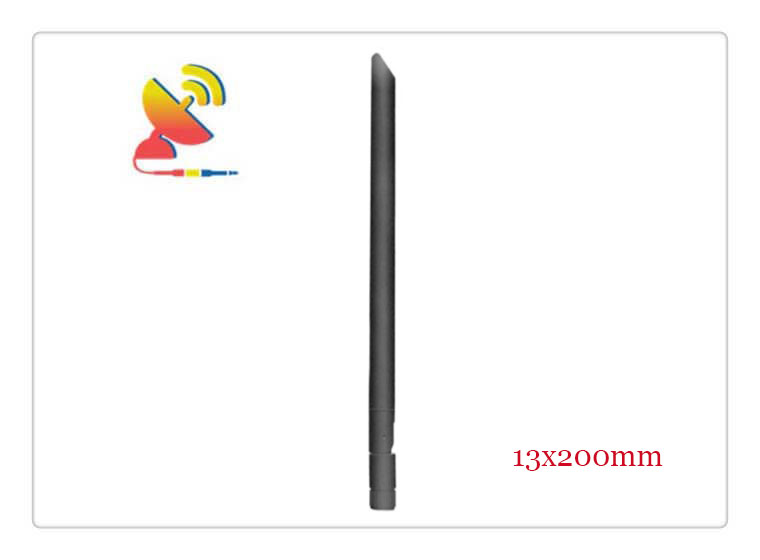

Lora 868MHz Antenna SMA Rubber Duck Antenna

Lora Gateway Antenna 3dBi Lora 868MHz Antenna - C&T RF Antennas Inc Antenna Manufacturer China

China Lora 868MHz Antenna Manufacturer

C&T RF Antennas Inc is the rubber duck antenna Lora 868MHz Antenna manufacturer, we provide the Lora antenna with other antenna types and other antenna frequencies.

Contact the C&T RF sales team for more Lora 868MHz antenna SMA Rubber Duck Antenna details.

What is Lora 868MHz Antenna SMA Rubber Duck Antenna?

The Lora 868MHz Antenna SMA Rubber Duck Antenna CTRF-ANTENNA-AP-0868-13190-SMA is an SMA male connector Omni rubber duck antenna 3dBi LoRa antenna manufactured by C&T RF Antennas Inc.

This Omnidirectional vertical rubber duck antenna is for indoor-outdoor use, transmitting and receiving on the 868Mhz frequency band (e.g. LoRa, LoRawan, ISM, Sigfox), with a 3dBi gain, standard male SMA connector antenna.

What is Lora’s Low power consumption?

We know the contradiction between distance and power consumption in the communication system. The transmit power is dropped, and the propagation distance is inevitable.

So how does Lora solve this contradiction? The root cause is that Lora increases the sensitivity of the receiver, thereby having a superior link budget, which does not require high transmit power.

Lora receiving end sensitivity is due to direct sequence spread spectrum technology. Lora uses a high-spread spectrum factor to obtain a higher signal gain. General FSK’s signal-to-noise ratio requires 8 dB, while Lora only needs -20 dB.

In addition, Lora also applies forward error correction coding techniques, adding redundancy in transmission information, and effectively resisting multipath fading.

Although some transmission efficiency is sacrificed, it has effectively improved the reliability of transmission. After all, LORA does not need high transmission rates.

With the same rubber duck antenna radome housing we have different frequency bands such as 433Mhz antenna, 868Mhz antenna, 915Mhz antenna, 2.4GHz antenna, GPS antenna, 3G antenna, 4G antenna, etc.

The Lora 868MHz Antenna Rubber Duck Antenna is supplied by C&T RF Antennas Inc, a professional antenna manufacturer in China, we provide the Lora antenna with many antenna types.

Such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

Contact us for more Lora 868MHz Antenna Rubber Duck Antenna details such as antenna datasheet, antenna pricing, antenna inventory, or other Lora antenna types.

Lora 868MHz Antenna SMA Rubber Duck Antenna Specifications

Lora 868MHz Antenna SMA Rubber Duck Antenna Electrical Specifications

RF Antenna TypeRubber Duck Antenna
ModelCTRF-ANTENNA-AP-0868-13190-SMA
Frequency Center868MHz
Gain3dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVerticle
DirectionalOmnidirectional
ConnectorSMA Male
Max Power50W
Lightning ProtectionDC-Ground

Lora 868MHz Antenna SMA Rubber Duck Antenna Mechanical Specifications

Dimension13*190mm
WeightApprox. 20g
Radome MaterialPlastic TPEE
Operation Temperature-20˚C ~ +80˚C
Storage Temperature-40˚C ~ +85˚C
ColorBlack
Antenna DesignDipole Array
MountingSMA Connector
SafetyEmission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa

Rubber Duck Antenna Features

How to select your wifi router smart device connector
How to select your wifi router smart device connector – C&T RF Antennas Inc



Omnidirectional antenna rubber ducky antenna swivel antenna features
Omnidirectional antenna rubber ducky antenna swivel antenna features – C&T RF Antennas Inc



The Omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail
The Omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail – C&T RF Antennas Inc



868MHz Antenna SMA Rubber Duck Antenna Applications

Wireless Antenna Applications
Wireless Antenna Applications – C&T RF Antennas Inc
