This product is Amazing

Lora Antenna 915 Outdoor

20x260mm C&T RF Antennas Inc - Lora Fiberglass Antenna Lora Outdoor Antenna Glass Fiber Lora Antenna 915 Outdoor

China Lora Antenna 915 Outdoor Manufacturer

C&T RF Antennas Inc is the Lora Antenna 915 Outdoor Antenna Manufacturer, we provide Lora antennas with many antenna types.

Contact the C&T RF sales team for more Omni Lora Antenna 915 Outdoor Antenna details.

What is Lora Antenna 915 Outdoor?

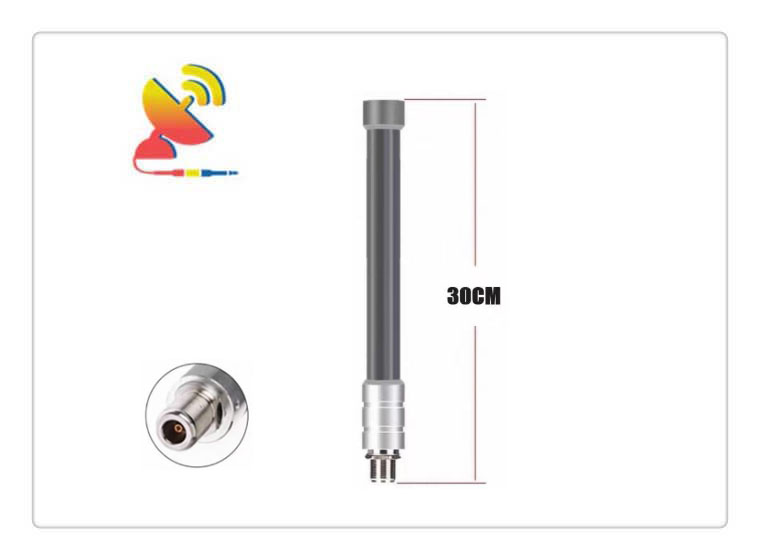

The Lora Antenna 915 Outdoor Antenna CTRF-ANTENNA-FB-0915-20260-N is an N-type connector omnidirectional fiberglass outdoor antenna with a 915 MHz frequency band antenna manufactured by C&T RF Antennas Inc for Lora, LoraWan, ISM, GSM, NB-IoT, RFID applications.

What are Lora’s Main features?

Long-distance can reach 30 miles, outdoor straight distance

Depth interior coverage

The two-way communication link with adaptive data rate

Low power sensor, extends battery life for 20 years

100na sleep mode

4.6mA activity reception mode

Lorawan, IEEE 802.15.4g, and WMBUS compatible

Single devices support GFSK and LORA

Scalable, multi-channel, high-capacity gateway

Applicable to any environment

With channel interference inhibition, LORA modulation is 30dB than FSK

Programmable registers with maximum flexibility

Pin is compatible

Supported by more than 500 Lora Alliance members with open LoraWan protocol

Large and growing online developer community based on LORA products

Public, semi-private, and private networks worldwide

LORA technology has a wide range of applications with excellent performance and flexible networking.

LORA remote transmission implementation architecture, three behavior patterns of Lorawan, and typical architecture and applications of LORA.
In addition to the smoke monitoring systems, power environment monitoring systems, air conditioning energy conservation monitoring systems, intelligent care monitoring systems, etc.,

The popularity of the Internet of Things should be based on people-oriented, life safety, traffic medical, environmental pollution, food problems, human resources, etc. It is the area of the Internet of Things that has been widely concerned from the Internet of Things, while LORA has more advantages over these scenes than other communication technologies.

The Lora Antenna 915 Outdoor Omni Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China, we provide 915 MHz antennas with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

Glass Fiber Lora Antenna Omni Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers antenna inventory, antenna pricing, & datasheets for Lora Antenna 915 Outdoor Antenna.

Lora Antenna 915 Outdoor Specifications

Lora Antenna 915 Outdoor Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-0915-20260-N
Frequency Range915MHz
Gain5dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

Lora Antenna 915 Outdoor Mechanical Specifications

Dimension20*260mm
WeightApprox. 400g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa

Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc
Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc
Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
