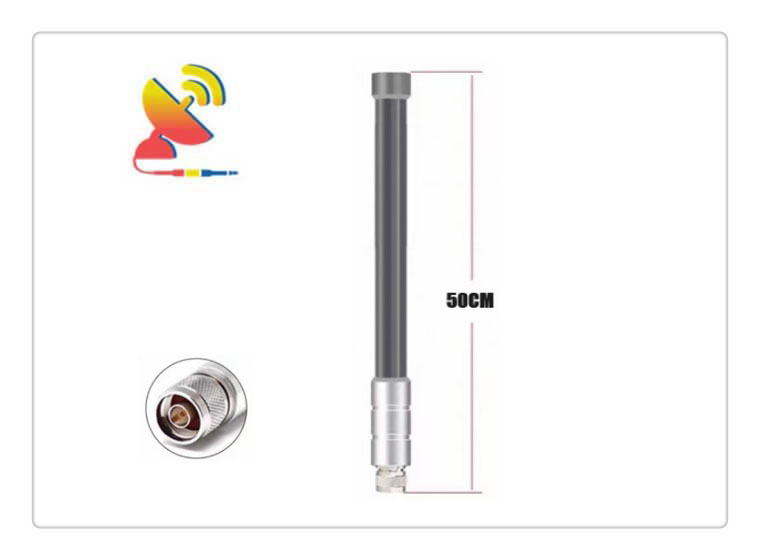

What is an 868/915 MHz Lora Fiberglass Antenna?
The Lora Fiberglass Antenna CTRF-ANTENNA-FB-8693-20260-N is an Omnidirectional dipole antenna 868/915 MHz Glass Fiber Lora Antenna designed for outdoor antenna manufactured by C&T RF Antennas Inc for the Lora application.
Product features:
The fiberglass antenna’s main feature is the enhancements to build quality as a result of the glass fiber material.
Fiberglass has extremely high tensile strength, making it resistant to bending and breaking.
Additionally, it has high vibration resistance, thermal insulation, electrical insulation, chemical resistance, water non-observant (IP67-rated waterproof), and UV radiation insensitive(UV-proof), which makes it extremely suitable for operating in harsh outdoor conditions.
For this reason, fiberglass antennas are often used for outdoor applications.
Wireless communication talking ways
Like the NB-IoT and 2G 3G 4G. LORA does not need this step, Lora will agree to a time window, and the base station only said that the terminal only listens. This is the core reason for Lora’s power consumption.
Both parties agreed to “10 minutes” and began to communicate, and their respective watches of both parties are not allowed. So the Lora terminal and base station require a regular “time”, (via Beacon).
The base station “Speech” is there, have the terminal “Did you hear”? If the base station needs to know that the terminal does not receive downlink information, it will require a terminal upstream and feedback information. These technical details online information is much more, and they will not be described.
The Omni 868/915 MHz Lora Fiberglass Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China, we provide Lora antennas with other antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
Omni Dipole Antenna Lora Fiberglass Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers 868/915 MHz Lora Glass Fiber Lora Antenna inventory, 868/915 MHz Lora Glass Fiber Lora Antenna pricing, & datasheets for 868/915 MHz Lora Fiberglass Antenna.
868/915 MHz Lora Fiberglass Antenna Specifications
868/915 MHz Lora Fiberglass Antenna Electrical Specifications | |
RF Antenna Type | Omni Fiberglass Antenna |
Model | CTRF-ANTENNA-FB-8593-20260-N |
Frequency Range | 850-930MHz |
Gain | 5dBi |
VSWR | ≤1.8 |
Impedance | 50 Ω |
Polarization | Vertical |
Directional | Omni-directional |
Connector | N-type Male |
Max Power | 50W |
Lightning Protection | DC-Ground |
868/915 MHz Lora Fiberglass Antenna Mechanical Specifications | |
Dimension | 20*260mm |
Weight | Approx. 400g |
Radome Material | Fiberglass |
Operation Temperature | -20˚C ~ +85˚C |
Storage Temperature | -40˚C ~ +85˚C |
Color | Grey |
Antenna Design | Dipole Array |
Mounting | Screw |
Safety Emission and other | RoHS Compliant |
Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa |
868/915 MHz Fiberglass antenna features and applications
