Low-profile 868/915 MHz Lora PCB Trace Antenna

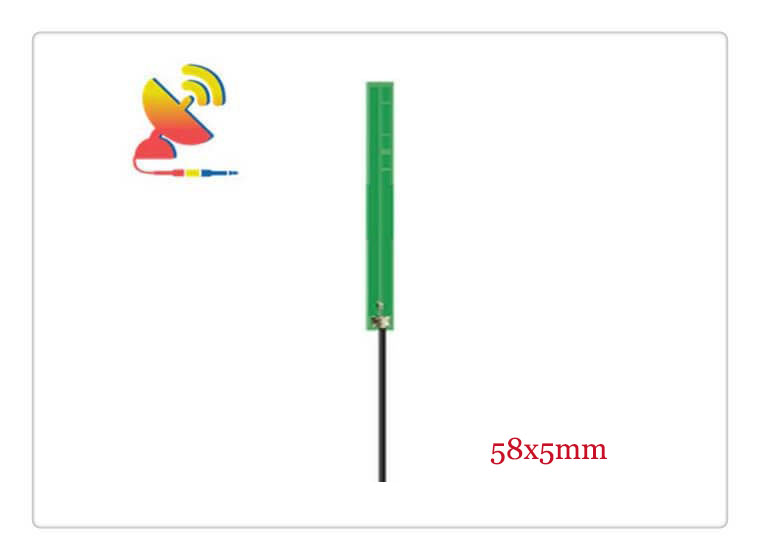

C&T RF Antennas Inc - 58x5mm Low-profile 868 915 MHz Lora PCB Trace Antenna Manufacturer

Lora PCB Trace Antenna Design

C&T RF Antennas Inc is the Low-profile 868/915 MHz Lora PCB Trace Antenna Design & Manufacturer, we supply the Lora antennas with many antenna types.

Contact us for more Low-profile 868/915 MHz Lora PCB Trace Antenna details.

What is a Low-profile 868/915 MHz Lora PCB Trace Antenna?

The Low-profile 868/915 MHz Lora PCB Trace Antenna CTRF-ANTENNA-PCB-8692-5805-IPEX item is an embedded PCB/printed circuit board 868/915 MHz Lora antenna manufactured by C&T RF Antennas Inc.

The 868/915 MHz antenna comes with a 58x5mm small size, 3dBi gain, and Ipex/u.FL connector antenna extension, Lora PCB antenna which is used for RF Electronics RF-LoRa 868MHz 915MHz LoRa transceiver LoRa node gateways, all LoRa and LoRaWAN end devices. Or ISM band applications.

868/915 MHz PCB antenna features.

Well turned with an 868 & 915 MHz

Small antenna size with a 58x5mm

PCB board for easy mount

Ipex connector for easy attachment

3dBi gain for long range



The Low-profile 868/915 MHz Lora PCB Trace Antenna is manufactured by C&T RF Antennas Inc, the PCB Lora Antenna manufacturer, and flexible PCB Lora Antenna supplier in China.

We provide Lora antennas with the types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

Contact us for more details on the Low-profile 868/915 MHz Lora PCB Trace Antenna such as the 868/915 MHz Lora PCB Antenna datasheet, 868/915 MHz Lora PCB Antenna pricing, 868/915 MHz Lora PCB Antenna inventory, etc.

Or the other 169/230/433/470/510/868/915 MHz Lora antenna types.

Low-profile 868/915 MHz Lora PCB Trace Antenna Specifications

Low-profile 868/915 MHz Lora PCB Trace Antenna Electrical Specifications

RF Antenna TypeBuiltin PCB Antenna
ModelCTRF-ANTENNA-PCB-8692-5805-IPEX
Frequency Range860-920MHz
Gain3±1dBi
Radiation PatternOmnidirectional
VSWR≤2.0
Impedance50 Ω
PolarizationVertical Polarization
Cable TypeRG1.13
Cable Length100mm
ConnectorU.FL/IPEX/MHF
Lightning ProtectionDC-Ground

Low-profile 868/915 MHz Lora PCB Trace Antenna Mechanical Specifications

PCB Board Dimension58*5mm
WeightApprox. 5g
MaterialPCB
Operation Temperature-40˚C ~ +85˚C
Storage Temperature-40˚C ~ +80˚C
ColorGreen
Antenna DesignDipole Array
Connector Pull Test>= 1 Kg
SafetyEmission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, IoT/M2M/NB-IoT/LoRa/GSM/RFID, etc.
