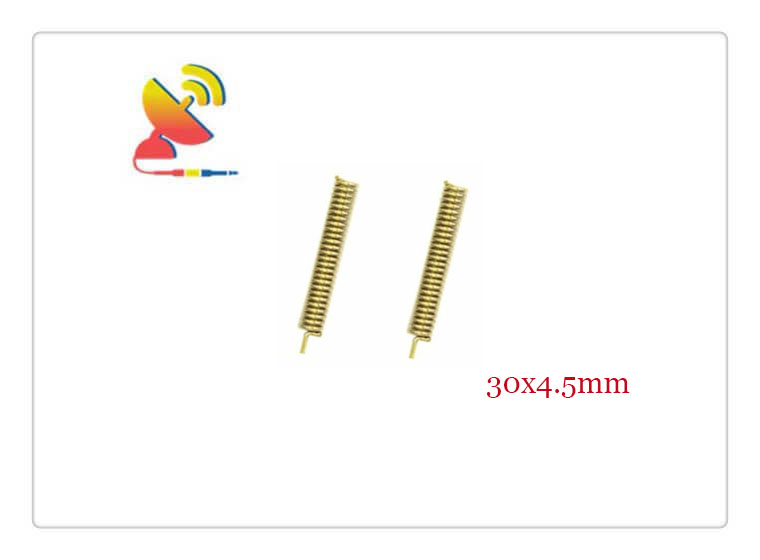

What is an RF 433MHz Helical Monopole Antenna?
The 433MHz helix antenna item CTRF-ANTENNA-SP-0433-3004 antenna model is a helical spring antenna with a single-band 433 MHz monopole antenna manufactured by C&T RF Antennas Inc. specially used for LoRaWAN/ISM applications.
Features of RF 433MHz Helical Monopole Antenna
Helical spiral antenna
Monopole-type helix antenna
Straight welding on PCB boards spring antenna
Antenna for RF 433 MHz applications
etc.
The high-performance & low-profile RF 433MHz helical monopole antennas are manufactured by C&T RF Antennas Inc, the RF antenna manufacturer in China, we also provide other antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antenna, Yagi Antenna, etc.
C&T RF Antennas Inc provides the internal-external antenna with many antenna frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, 1.2G, 1.4G, 1.8G, UWB, RFID, ADS-B, etc.
Contact us for more details on the Low-profile RF 433MHz helical monopole antenna such as 433 MHz RF antenna datasheet, 433 MHz helical antenna pricing, 433 MHz monopole antenna inventory, or other 433 MHz antenna styles.
RF 433MHz Helical Monopole Antenna Specifications
RF 433MHz Helical Monopole Antenna Electrical Specifications | |
| RF Antenna Type | Embedded Spring Antenna |
| Model | CTRF-ANTENNA-SP-0433-3004 |
| Frequency | 433MHz |
| Gain | 4dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Spring Coil Wire OD | 0.8mm |
| Spring Coil Antenna OD | 4.5mm |
| Spring Coil Turns | 26 |
| Lightning Protection | DC-Ground |
RF 433MHz Helical Monopole Antenna Mechanical Specifications | |
| Dimension | 30*4.5*0.6mm |
| Weight | Approx. 5g |
| Material | Spring |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Finished Antenna Color | Copper |
| Antenna Design | Monopole Array |
| Mounting | Soldering |
| Safety Emission and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/LoRa, etc |
