SMA Antenna Wifi 2.4 GHz

SMA Male Dual-Band Antenna Wifi Antenna SMA Male External SMA Antenna SMA Antenna Wifi

Wifi Antenna SMA Male Manufacturer

C&T RF Antennas Inc is the Wifi Antenna SMA Male Antenna Manufacturer, we provide the 2.4GHz antenna with other antenna types.

Contact the C&T RF sales team for more wifi SMA male antenna details.

What is an SMA Antenna Wifi 2.4 GHz?

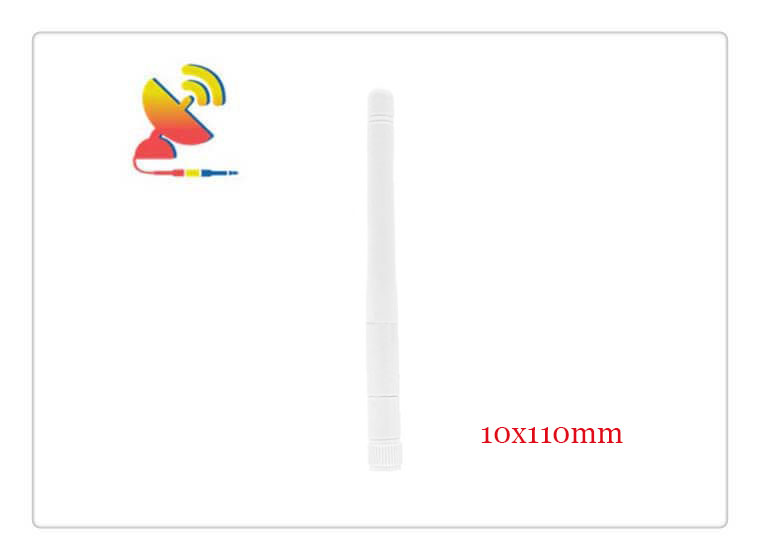

The SMA Antenna Wifi Antenna CTRF-ANTENNA-AP-2450-10110-SMA-M is a portable antenna rubber duck antenna with a standard SMA male pin connector, 2.4 – 2.5GHz wifi antenna omnidirectional antenna design swivel antenna manufactured by C&T RF Antennas Inc.

This compactable external SMA male antenna with a 2.4GHz wifi band rubber duck antenna is suited for wireless routers, access points, Bluetooth devices, etc.

The SMA Antenna Wifi 2.4 GHz SMA connector is most commonly used in microwave systems, hand-held radio, and mobile telephone antennas, and, more recently, with WiFi antenna systems.

C&T RF Antennas Inc provides many wifi antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Coil AntennasSector AntennasYagi antennas, etc.

C&T RF Antennas Inc provides the internal-external antenna with many radio frequency bands Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

C&T RF Antennas Inc provides single-band, dual-band, and multi-band antennas for Wi-Fi And BluetoothGPS And GNSSLoRa And ISMIoT, And M2M applications.

The Wifi Antenna2.4 GHz SMA male antenna is available at C&T RF Antennas Inc, the C&T RF sales team offers the 2.4 GHz Wifi antenna SMA Male antenna datasheet, 2.4 GHz Wifi antenna SMA Male antenna pricing, and inventory on the 2.4 GHz Wifi antenna SMA Male antenna.

Contact us for more SMA wifi antenna or other wifi antenna details.

SMA Antenna Wifi 2.4 GHz Specifications

2.4 GHz Wifi Antenna SMA Male Antenna Electrical Specifications

RF Antenna TypeRubber Duck Antenna
ModelCTRF-ANTENNA-AP-2450-10110-SMA-M
Frequency Range2400-2500MHz
Gain2dBi
VSWR≤2.0
Impedance50 Ω
PolarizationVerticle
DirectionalOmnidirectional
ConnectorSMA Male
Max Power50W
Lightning ProtectionDC-Ground

2.4 GHz Wifi Antenna SMA Male Antenna Mechanical Specifications

Dimension10*110mm
WeightApprox.12g
Radome MaterialPlastic ABS
Operation Temperature-20˚C ~ +80˚C
Storage Temperature-40˚C ~ +85˚C
ColorBlack
Antenna DesignDipole Array
MountingSMAConnector
Safety Emission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, M2M/IoT/NB-IoT/LoRa, Wi-Fi/Zigbee/Bluetooth

Rubber Ducky Antenna Features

How to select your wifi router smart device connector
How to select your wifi router smart device connector – C&T RF Antennas Inc



Omnidirectional antenna rubber ducky antenna swivel antenna features
Omnidirectional antenna rubber ducky antenna swivel antenna features – C&T RF Antennas Inc



The omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail
The Omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail – C&T RF Antennas Inc

2.4 GHz SMA Antenna Wifi Applications

Wireless Antenna Applications
Wireless Antenna Applications – C&T RF Antennas Inc
