This product is Amazing

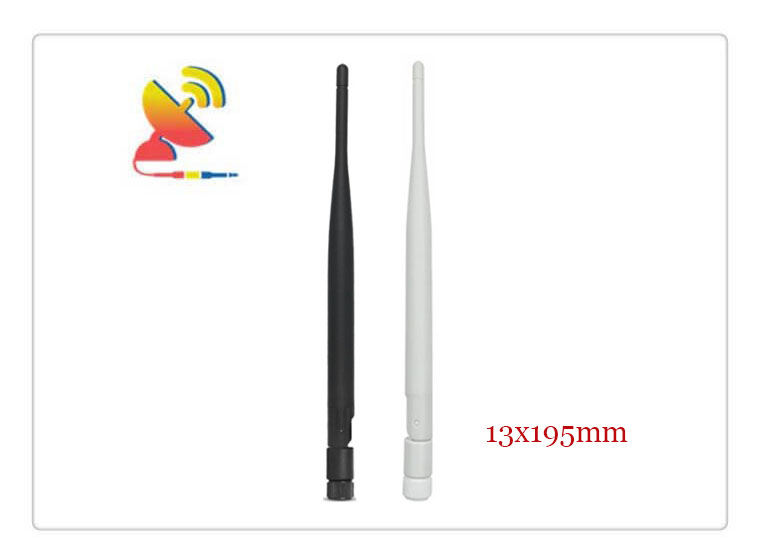

SMA Dual-Band Antenna 2.4GHz 5GHz

4G Router SMA Connector SMA Dual-Band Antenna Wifi antenna

SMA Dual-Band Antenna Manufacturer

C&T RF Antennas Inc is the SMA Dual-Band Antenna 2.4GHz 5GHz rubber ducky antenna Manufacturer, we provide the dual wifi antenna with other antenna types.

Contact the C&T RF sales team for more 2.4GHz 5GHz SMA Male Dual-Band Antenna details.

What is SMA Dual-Band Antenna 2.4GHz 5GHz?

The portable swivel antenna SMA dual-band antenna CTRF-ANTENNA-AP-2458-13158-SMA is a dual-band wifi antenna omnidirectional antenna with a 2.4GHz /5.8GHz dual-frequency SMA male connector antenna manufactured by C&T RF Antennas Inc.

This rubber ducky antenna radome has the wifi single-band antenna, 3G 4G antenna for your choice.

SMA Dual-Band Antenna 2.4GHz 5GHz Antenna is available at C&T RF Antennas Inc, we offer the 2.4GHz 5GHz SMA Male Dual-Band Antenna datasheet, 2.4GHz 5GHz SMA Male Dual-Band Antenna pricing, and inventory on the 2.4GHz 5GHz SMA Male Dual-Band Antenna.

C&T RF Antennas Inc provides antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Coil AntennasSector AntennasYagi antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

C&T RF Antennas Inc provides single-band, dual-band, and multi-band antennas for Wi-Fi And BluetoothGPS And GNSSLoRa And ISMIoT, And M2M applications.

Contact us for the dual-band wifi antenna or single-band wifi antenna details.

SMA Dual-Band Antenna 2.4GHz 5GHz Antenna Specifications

Dual-Band Wifi Antenna Electrical Specifications

RF Antenna TypeRubber Duck Antenna
ModelCTRF-ANTENNA-AP-2458-13158-SMA
Frequency Range2400-2500MHz, 5150-5800MHz
Gain3/5dBi
VSWR≤2.0
Impedance50 Ω
PolarizationVerticle
DirectionalOmnidirectional
ConnectorSMA Male
Max Power50W
Lightning ProtectionDC-Ground

Dual-Band Wifi Antenna Mechanical Specifications

Dimension13*158mm
WeightApprox.20g
Radome MaterialPlastic ABS
Operation Temperature-20˚C ~ +80˚C
Storage Temperature-40˚C ~ +85˚C
ColorBlack
Antenna DesignDipole Array
MountingSMAConnector
Safety Emission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, M2M/IoT, Wi-Fi/Zigbee/Bluetoot/Sigfox, etc

How to select your wifi router/modules/smart devices’ antenna connector?

How to select your wifi router smart device connector



Omnidirectional antenna rubber ducky antenna swivel antenna features

Omnidirectional antenna rubber ducky antenna swivel antenna features

The Omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail



The omni dipole antenna rubber duck antenna can be used with an antenna extension pigtail

The dual-band antenna applications



Wireless Antenna Applications
Wireless Antenna Applications – C&T RF Antennas Inc
