This product is Amazing

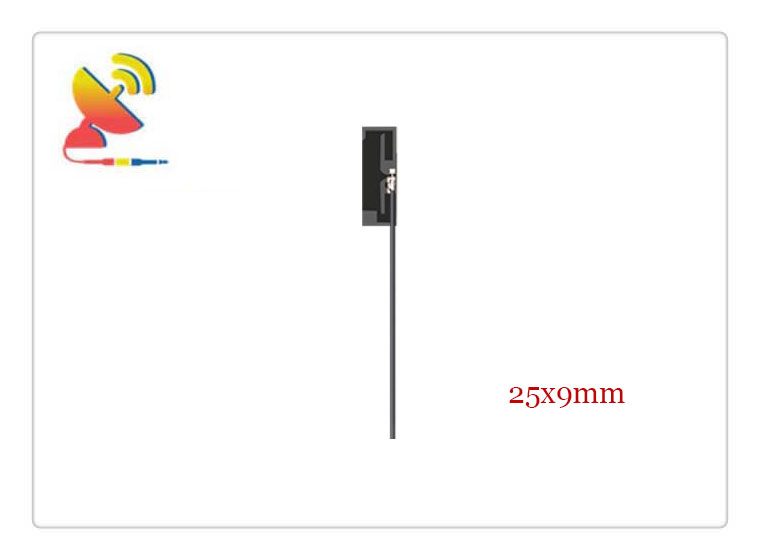

Small Dual Band Wifi Antenna 2.4/5GHz

25x9mm small dual band wifi antenna dual wifi antenna FPC antenna

Small Dual Band Wifi Antenna Manufacturer

C&T RF Antennas Inc is the embedded antenna Small Dual Band Wifi Antenna Manufacturer, we supply dual-band wifi antennas with many antenna types.

Contact us for more dual-band wifi antenna details.



What is Small Dual Band Wifi Antenna 2.4/5GHz?

The Small Dual Band Wifi Antenna CTRF-ANTENNA-FPC-2458-2509-IPEX embedded antenna is a flex PCB antenna with a 2.4/5GHz Wifi dual-band antenna manufactured by C&T RF Antennas Inc for wireless networks.

This 2.4/5GHz Wifi Antenna comes with a small size 25x9mm flexible printed circuit board, 2dBi gain, Ipex connector, RG 1.13 coaxial cable antenna extension, 3M self-adhesive sticker for the easy mount to the wireless network terminals’ PCB board.

In wireless networking, dual-band equipment is capable of transmitting in either of two standard frequency ranges. Modern Wi-Fi home networks feature dual-band broadband routers that support both 2.4 GHz and 5 GHz channels.

The Small Dual Band Wifi Antenna CTRF-ANTENNA-FPC-2458-2509-IPEX embedded antenna flex PCB antenna has 2.4 GHz and 5 GHz frequency bands supplied by C&T RF Antennas Inc, it is used for dual-band wireless networking, such as wifi routers, smart devices, and so on.

C&T RF Antennas Inc provides antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Coil AntennasSector AntennasYagi antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

C&T RF Antennas Inc provides single-band, dual-band, and multi-band antennas for Wi-Fi And BluetoothGPS And GNSSLoRa And ISMIoT, And M2M applications.

Contact the C&T RF sales team for more details about the Small 2.4/5GHz Dual Band MINI Wifi Antenna such as the 2.4/5GHz Wifi Antenna datasheet, 2.4/5GHz Wifi Antenna pricing, and 2.4/5GHz Wifi Antenna inventory.

Or other 2.4/5GHz Wifi Antenna styles.

MINI 2.4/5GHz Dual-Band Wifi Antenna Specifications

MINI 2.4/5GHz Dual-Band Wifi Antenna Electrical Specifications

RF Antenna TypeDual-band FPC Antenna
ModelCTRF-ANTENNA-FPC-2458-2509-IPEX
Frequency Range2400-2500MHz/5150-5800MHz
Gain1/2dBi
VSWR≤2.0
Impedance50 Ω
PolarizationLinear
CableRG 1.13
ConnectorIpex/u.FL
Max Power20W
Lightning ProtectionDC-Ground

MINI Dual-Band Wifi Antenna Mechanical Specifications

Dimension25*9mm
WeightApprox. 2g
RadomeMaterialFPC
Operation Temperature-40˚C ~ +85˚C
Storage Temperature-40˚C ~ +80˚C
ColorBlack
Antenna DesignDipole Array
MountingSticker/Connector
SafetyEmission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox, etc



Embedded FPC Antenna Features

Flexible PCB Antenna FPC Antenna Features
Flexible PCB Antenna FPC Antenna Features – C&T RF Antennas Inc



RG cable, stable signal transmission, soft and flexible
RG cable, stable signal transmission, soft and flexible – C&T RF Antennas Inc

Embedded FPC Antenna Applications

Wireless Antenna Applications
Wireless Antenna Applications – C&T RF Antennas Inc
