What is a Small Antenna Wifi 2.4 GHz Flexible Antenna?

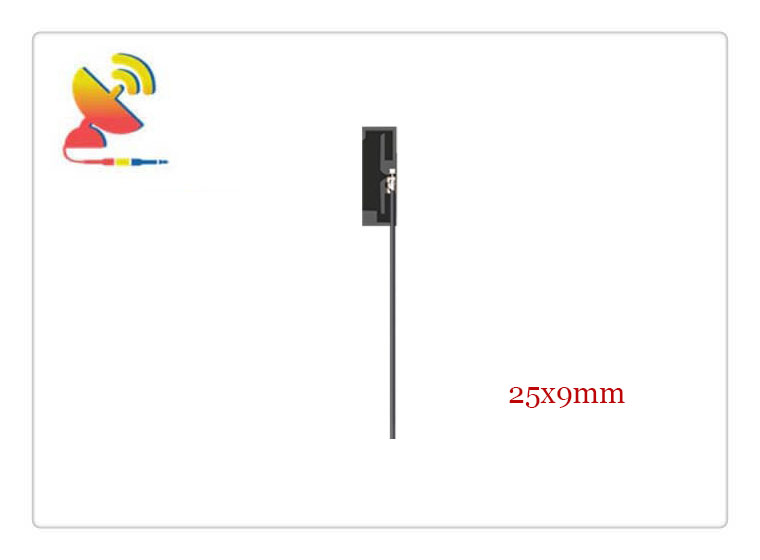

The embedded antenna FPC antenna item Antenna Wifi 2.4 GHz CTRF-ANTENNA-FPC-2450-2509-IPEX is a small size flexible PCB antenna size 25x9mm with 2.4GHz wifi, Bluetooth, Zigbee 2400-2500MHz frequency for the wireless application.
The Small Antenna Wifi 2.4 GHz Flexible Antenna has a 2dBi gain antenna with RG 1.13 cable, Ipex connector, or opening end for soldering to the PCB board of the terminal device.
The embedded FPC antenna item CTRF-ANTENNA-FPC-2450-2509-IPEX Small Antenna Wifi 2.4 GHz Flexible Antenna is manufactured by C&T RF Antennas Inc, the PCB/FPC/Spring antenna manufacturer.
We provide many Wifi antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antenna, Yagi Antenna, etc.
C&T RF Antennas Inc provides the RF antenna with many antenna frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc provides RF wireless antennas for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
Contact the C&T RF Antennas engineering team for the CTRF-ANTENNA-FPC-2450-2509-IPEX Small Antenna Wifi 2.4 GHz Flexible Antenna’s datasheet, antenna pricing & antenna inventory.
Or other PCB/FPC/Omni/directional wifi antenna styles.
Small Antenna Wifi 2.4GHz Flexible Antenna Specifications
Small Antenna Wifi 2.4GHz Flexible Antenna Electrical Specifications | |
| RF Antenna Type | Embedded FPC Antenna |
| Model | CTRF-ANTENNA-FPC-2450-2509-IPEX |
| Frequency | 2400-2500 MHz |
| Gain | 2dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | U.FL/IPEX |
| Cable Length | 100mm |
| Lightning Protection | DC-Ground |
Small Antenna Wifi 2.4GHz Flexible Antenna Mechanical Specifications | |
| FPC Board Dimension | 25*9mm |
| Weight | Approx. 2g |
| Material | FPCB + RG Cable + U.FL connector |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Mounting | Connector/Sticker |
| Safety Emission and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox, etc |
Flex PCB Antenna Features
RG cable, stable signal transmission, soft and flexible – C&T RF Antennas Inc
Flex PCB Antenna Applications
