What is a Compact-size Flexible PCB Wireless WiFi Antenna?

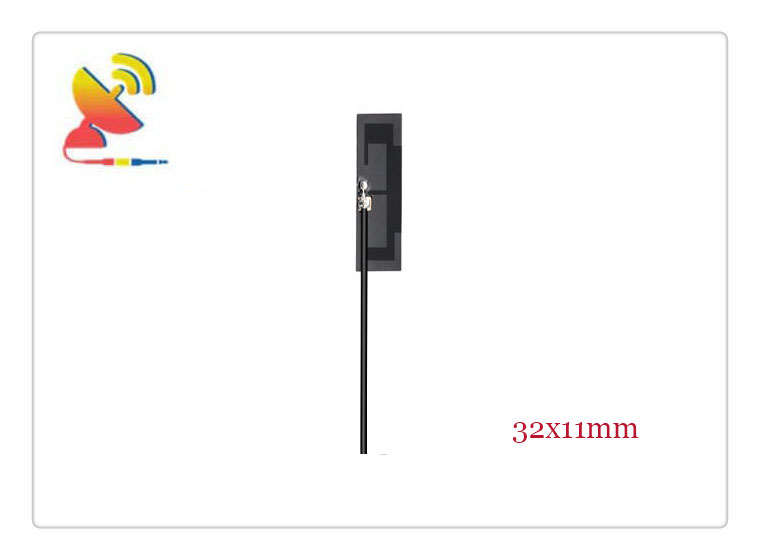

The Compact-size Flexible PCB Wireless WiFi Antenna CTRF-ANTENNA-FPC-2450-3211-IPEX item is a compact-size antenna with a 32x11mm, Ipex/uFL connector, RG 1.13 pigtail antenna manufactured by C&T RF Antennas Inc. for the 2.4 GHz ISM band, suited for use in IoT/M2M devices and compact RF modules.
The Compact-size Flexible PCB Wireless WiFi Antenna is a high-efficiency Flexible PCB (FPC) antenna featuring an ultra-thin, flexible design that supports ground plane independence, easy “peel and stick” conformal mounting, and a range of cable length options for versatile integration into compact electronic devices.
Features of the Compact-size Flexible PCB Wireless WiFi Antenna
Compact size with a 32x10mm flexible PCB antenna.
2400-2500 MHz frequency range
Self-adhesive 3M sticker
IPEX/u.FL/MHF1 connector easily connects to the device
RG 1.13 low-loss flexible cable extension
etc.
C&T RF Antennas Inc. provides antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, Yagi antennas, etc.
C&T RF Antennas Inc. provides internal and external IoT & M2M antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc. provides single-band, dual-band, and multi-band antennas for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
The Compact-size Flexible PCB Wireless WiFi Antenna is manufactured by C&T RF Antennas Inc., a China 2.4 GHz antenna manufacturer; Contact us for more indoor-outdoor 2.4 GHz antenna styles you need.
Compact-size Flexible PCB Wireless WiFi Antenna Specifications
Compact-size Flexible PCB Wireless WiFi Antenna Electrical Specifications | |
| RF Antenna Type | Embedded FPC Antenna |
| Model | CTRF-ANTENNA-FPC-2450-3211-IPEX |
| Frequency | 2400-2500 MHz |
| Gain | 3dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Linear Polarization |
| Cable Type | RG1.13 |
| Connector | U.FL/IPEX |
| Cable Length | 100mm |
| Lightning Protection | DC-Ground |
Compact-size Flexible PCB Wireless WiFi Antenna Mechanical Specifications | |
| FPC Board Dimension | 32*11mm |
| Weight | Approx. 5g |
| Material | FPCB + RG Cable + U.FL connector |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Mounting | Connector/Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M, Wi-Fi/Bluetooth/Zigbee/Sigfox, etc |
Flexible Antenna FPCB Antenna Features
Flex PCB Antenna FPC Antenna Applications
