What is a Cellular 5G NR PCB Antenna?
The high-gain Cellular 5G NR PCB antenna item (CTRF-ANTENNA-PCB-60600-10620-IPEX) is a 10/12 dBi high-gain cellular antenna, an ultra-wideband PCB antenna manufactured by C&T RF Antennas Inc. for cellular IoT wireless applications.

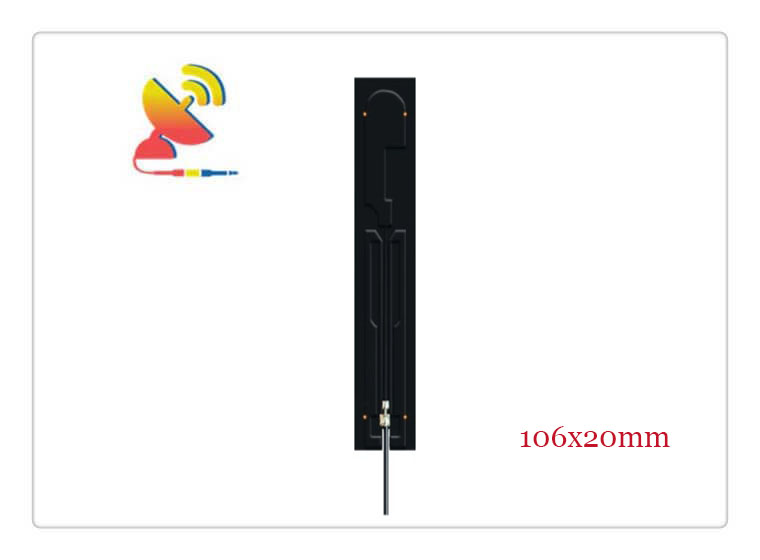

The high-gain Cellular 5G NR PCB antenna comes with a 106x20mm black color printed circuit board size, IPEX/u.FL/MHF1 connector, adhesive-type backing, 10/12dBi peak gain, 600- 6000MHz spectrum for cellular 4G 5G networks.
C&T RF Antennas Inc., the internal & external IoT antenna manufacturer in China, manufactures high-gain Cellular 5G NR PCB antennas.
C&T RF Antennas Inc. provides antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, Yagi antennas, etc.
C&T RF Antennas Inc provides the internal-external antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc provides single-band, dual-band, and multi-band antennas for Wi-Fi And Bluetooth, GPS And GNSS, LoRa And ISM, IoT, And M2M applications.
Contact us for details on the high-gain Cellular 5G NR PCB antenna, such as the 5G NR PCB antenna datasheet, cellular antenna pricing, and antenna inventory, etc.
Or the other internal & external 4G 5G antenna types.
High-Gain Cellular 5G NR PCB Antenna Specifications
High-Gain Cellular 5G NR PCB Antenna Electrical Specifications | |
| RF Antenna Type | Built-in PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-10620-IPEX |
| Frequency Range | 600-6000MHz |
| Gain | 10dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Cable Length | 120mm |
| Connector | U.FL/IPEX |
| Lightning Protection | DC-Ground |
High-Gain Cellular 5G NR PCB Antenna Mechanical Specifications | |
| PCB Board Dimension | 106*20mm |
| Weight | Approx. 10g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, LTE-M/Cat-M, 2G/3G/GSM/4G/LTE/5G/NR/6G, etc. |
High-Gain Cellular 5G NR PCB Antenna Features
High-performance RF Antenna Applications
