What is a High-Gain Internal PCB LTE 4G 3G Antenna?
The high-gain internal PCB LTE 4G 3G antenna CTRF-ANTENNA-PCB-7027-10714-IPEX antenna is a high-gain 8/10dBi antenna with a 700~960 MHz / 1700- 2700 MHz 3G 4G built-in PCB antenna manufactured by C&T RF Antennas Inc., designed for 3G/4G LTE routers, modems, and gateways, etc.
Features of High-Gain Internal PCB LTE 4G 3G Antenna
4G 3G antenna
Rigid PCB antenna
8/10dBi high-gain antenna
Internal antenna
Ashesive peel-and-stick antenna
etc.
C&T RF Antennas Inc., the IoT & M2M antennas manufacturer in China, manufactures high-gain internal PCB LTE 4G 3G antennas.
C&T RF Antennas Inc. provides antenna types such as Through-hole Mount Antennas, Magnetic Mount Antennas, Rubber Duck Antennas, Fiberglass Antennas, PCB Antennas, FPC Antennas, Spring Coil Antennas, Sector Antennas, Yagi antennas, etc.
C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular, 6G, 5G, 4G, 3G, NB-IoT, GNSS, GPS, Dual-band Wifi, 5.8 GHz, 2.4 GHz, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz LoRa, UWB, RFID, ADS-B, etc.
C&T RF Antennas Inc. provides single-band, dual-band, and multi-band antennas for Wi-Fi and Bluetooth, GPS and GNSS, LoRa and ISM, IoT, and M2M applications.
Contact us for details on the high-gain internal PCB LTE 4G 3G antenna, such as the PCB LTE antenna datasheet, 4G 3G PCB antenna pricing, 3G 4G/LTE internal antenna inventory, etc.
Or the other internal & external 3G, 4G, LTE, cellular antenna types.
High-Gain Internal PCB LTE 4G 3G Antenna Specifications
High-Gain Internal PCB LTE 4G 3G Antenna Electrical Specifications | |
| RF Antenna Type | Built-in PCB Antenna |
| Model | CCTRF-ANTENNA-PCB-7027-10714-IPEX |
| Frequency Range | 698-960MHz; 1710-2700MHz |
| Gain | 8/10dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Cable Length | 100mm |
| Connector | U.FL/IPEX |
| Lightning Protection | DC-Ground |
High-Gain Internal PCB LTE 4G 3G Antenna Mechanical Specifications | |

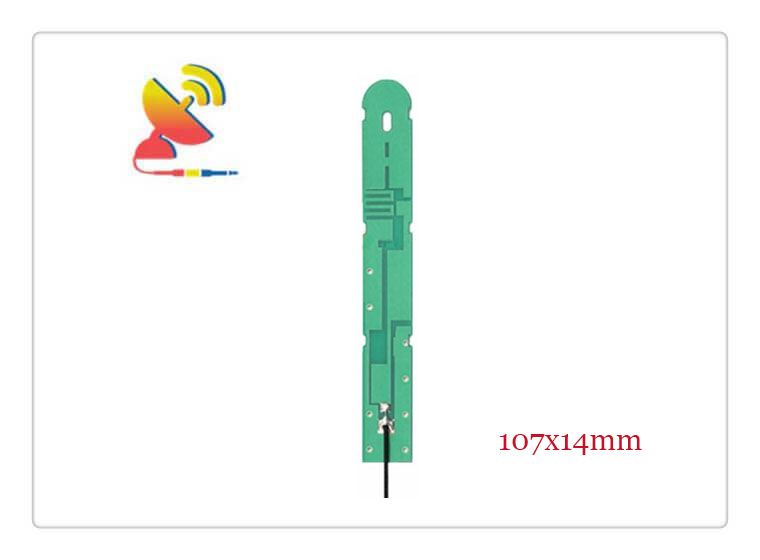

| PCB Board Dimension | 107*14mm |
| Weight | Approx. 8g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| SafetyEmission and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M, LTE-M/Cat-M, 2G/3G/4G, Cellular (NB-IoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS, Lora, etc. |
High-Gain Internal PCB LTE 4G 3G Antenna Features
High-performance RF Antenna Applications
