This product is Amazing

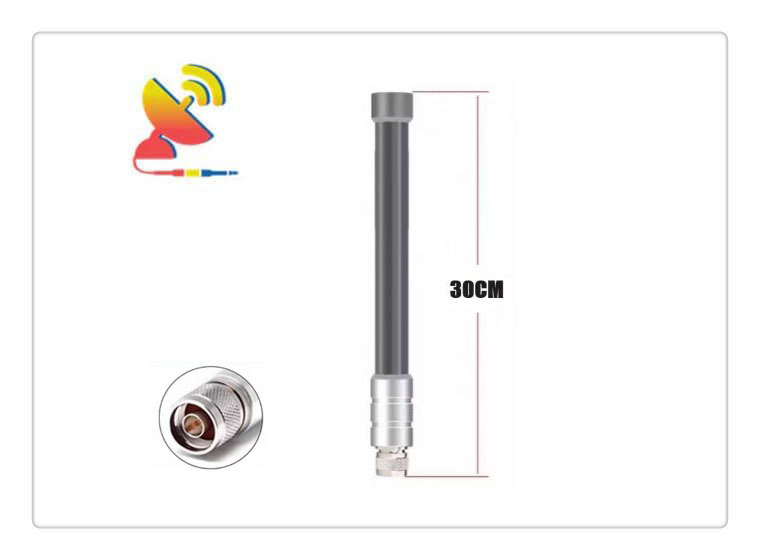

5dBi Lora External Antenna Omni Dipole Antenna

20x260mm C&T RF Antennas Inc - Outdoor Lora Antenna Design Lora External Antenna Lora Dipole Antenna

External Lora Dipole Antenna Manufacturer

C&T RF Antennas Inc is the 5dBi Lora External Antenna Omni Dipole Antenna Fiberglass Antenna Manufacturer, we provide Lora antennas with many antenna types.

Contact the C&T RF sales team for more External Lora Dipole Antenna Fiberglass Antenna details.

What is 5dBi Lora External Antenna Omni Dipole Antenna?

The 5dBi Lora External Antenna CTRF-ANTENNA-FB-8693-20260-N is an external fiberglass antenna outdoor Lora antenna with an 868/915MHz dipole antenna designed 5dBi gain antenna manufactured by C&T RF Antennas Inc.

The omnidirectional long-range Lora antenna 5dBi fiberglass antenna is used for LoRa and LoRaWAN gateway and node applications.

The Omni Lora antenna comes with a 20x260mm waterproof glass fiber antenna radome, N male pin connector, peak gain at 5dBi, and full-day working high-performance for the Lora/LoraWan/ISM outdoor applications.

Lora’s low power consumption feature

This is one of the main points of the Lora module antenna factor, in order to save energy, and reduce heat, thereby extending the service life of the product, which is especially important for equipment that requires battery power.

Wireless products run from the battery need to think to charge, replace, or design long-life power. Perhaps, replacing the battery is not important, but when the customer has thousands of devices, the resources and subsequent costs will become very important.

Choose a low-power Lora module antenna, which is of great significance in saving energy, and extending product service life.

The 5dBi Lora External Antenna Omni Dipole Antenna glass fiber antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China.

We provide Lora antennas with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

5dBi Lora External Antenna Omni Dipole Antenna Fiberglass Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers external 5dBi Lora dipole antenna inventory, external 5dBi Lora dipole antenna pricing, & datasheets for external 5dBi Lora dipole antenna.

5dBi Lora External Antenna Omni Dipole Antenna Specifications

5dBi Lora External Antenna Omni Dipole Antenna Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-8593-20260-N
Frequency Range850-930MHz
Gain5dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

5dBi Lora External Antenna Omni Dipole Antenna Mechanical Specifications

Dimension20*260mm
WeightApprox. 400g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa



LORA deployment status

In order to deploy Lora’s deployment, due to the relatively mature industrial ecology, it has been verified in a multi-partner, including many well-known companies at home and abroad, which is considered to be low-power, wide. Covered the most effective technology.

However, there is a debate between the authorized spectrum technology NB-IoT and non-authorized spectrum techniques of LORA, SIGFOX, and RPMA.

In the future, the Internet of Things market is very large, and in this large market, all kinds of technologies have the opportunity. In a special application, Lora is very suitable for smart cities, political enterprise industries, etc., and NB-IoT authorized spectrum technology constitutes a complement, and both parties can completely coexist.

Relative to other LPWAN technologies, open the world map, we can see the figure of the Lora network deployment has spread all over Europe, the United States, Asia-Pacific, etc., and the mainstream telecom operators of all countries have selected Lora to build the Internet of Things. Special network.

Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc
Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc
Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
