This product is Amazing

High-performance Lora PCB Antenna 868 MHz 915MHz

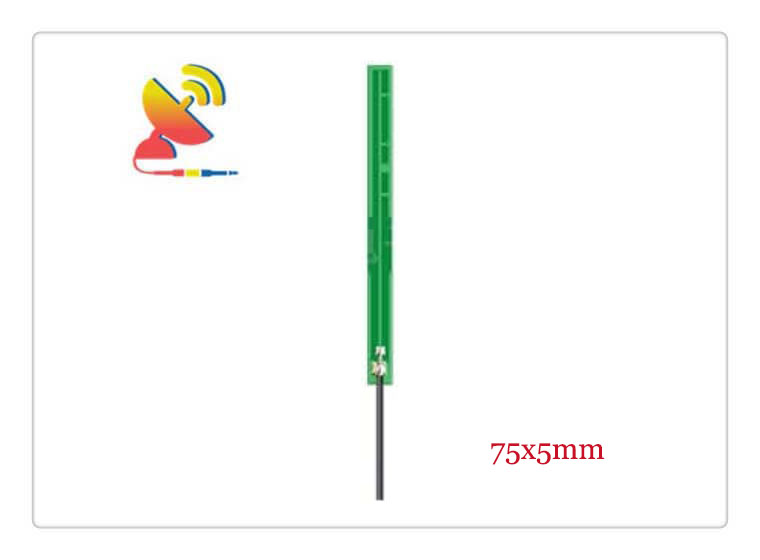

75x5mm Lora PCB Antenna 868 MHz 915MHz Antenna Manufacturer - C&T RF Antennas Inc

Lora PCB Antenna Design

C&T RF Antennas Inc is the High-performance Lora PCB Antenna 868 MHz 915MHz PCB Antenna Design & Manufacturer, we supply the Lora antennas with many antenna types.

Contact us for more High-performance 868 / 915 MHz PCB Lora Antenna details.

What is a High-performance Lora PCB Antenna 868 MHz 915MHz?

The High-performance Lora PCB Antenna 868 MHz 915MHz antenna CTRF-ANTENNA-PCB-8593-7505-IPEX item is an Omni-directional PCB antenna dipole design printed circuit board antenna 75x5mm PCB-based board size embedded PCB antenna manufactured by C&T RF Antennas Inc.

What is Lora Antenna?

LORA is a low-power remote wireless transmission technology based on spread spectrum technology, and the emergence of LORA technology solves the requirements of long-distance and low power consumption in the Internet of Things technology.

LORA is actually one of many LPWAN communication technology, earliest, adopted, and promoted by the US Semtech.

This solution provides users with a simple way to achieve long-distance, low-power wireless communication means.
At present, LORA is mainly operated in the ISM band, mainly including 433 MHz, 868 MHz, 915 MHz, etc.

The 4dBi antenna Lora PCB Antenna 868 MHz 915MHz Omni-directional PCB Antenna is manufactured by C&T RF Antennas Inc, the PCB Lora Antenna manufacturer, and flexible PCB Lora Antenna supplier in China.

We provide Lora antennas with the types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external IoT & M2M antenna with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

Contact us for more details on the High-performance Lora PCB Antenna 868 MHz 915MHz Antenna such as the Antenna datasheet, pricing, inventory, etc. Or the other Lora antenna types.

High-performance Lora PCB Antenna 868 MHz 915MHz Specifications

High-performance PCB Lora Antenna Electrical Specifications

RF Antenna TypeBuiltin PCB Antenna
ModelCTRF-ANTENNA-PCB-8593-7505-IPEX
Frequency Range850-930MHz
Gain4±1dBi
Radiation PatternOmnidirectional
VSWR≤1.8
Impedance50 Ω
PolarizationVertical Polarization
Cable TypeRG1.13
Cable Length115mm
ConnectorU.FL/IPEX/MHF
Lightning ProtectionDC-Ground

High-performance PCB Lora Antenna Mechanical Specifications

PCB Board Dimension75*5mm
WeightApprox. 5g
MaterialPCB
Operation Temperature-40˚C ~ +85˚C
Storage Temperature-40˚C ~ +80˚C
ColorGreen
Antenna DesignDipole Array
Connector Pull Test>= 1 Kg
SafetyEmission and otherRoHS Compliant
ApplicationsISM/SCADA/Utilities, IoT/NB-IoT/LoRa
