High-gain Lorawan Antenna 868 MHz 8dBi

20x600mm 868MHz Antenna 8dBi Fiberglass Antenna Lora Fiberglass Antenna 8dBi Lorawan Antenna 868 MHz 8dBi Lora Antenna In Attic - C&T RF Antennas Inc

Lorawan Antenna 868 MHz 8dBi Manufacturer

C&T RF Antennas Inc is the Omni Lorawan Antenna 868 MHz 8dBi Antenna Manufacturer, we provide external and internal Lora & Lorawan antennas with many antenna types.

Contact the C&T RF sales team for more High-gain Lorawan Antenna 868 MHz 8dBi fiberglass antenna details.

What is Lorawan Antenna 868 MHz 8dBi?

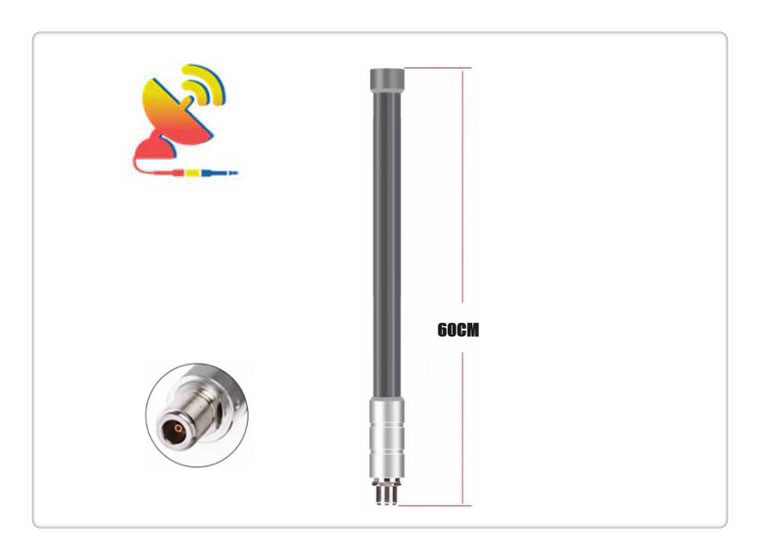

The Lorawan Antenna 868 MHz 8dBi Fiberglass Antenna CTRF-ANTENNA-FB-8593-20600-N-8DBI is an Antenna 868 MHz / 915 MHz high-gain 8dbi antenna (N-male) Omnidirectional/round beam fiberglass antenna manufactured by C&T RF Antennas Inc for outdoor LoRA Helium Network, IoT applications.

What is the LoRa Security Policy?

The previously mentioned security mechanisms rely on well-tested and standardized AES encryption algorithms.

These algorithms have been studied and analyzed by the encryption community for years and have been recognized by the National Institute of Standards and Technology as the best security algorithm applicable between the nodes and the network.

LoRaWAN uses AES encryption statements in combination with multiple modes of operation: CMAC for integrity protection, and CTR for encryption. each LoRaWAN endpoint has a uniquely identified 128-bit AES Key (called AppKey) and another unique identifier (EUI-64-based DevEUI), both of which are applied to the device identification process.

The assignment of the EUI-64 identifier requires the applicant to obtain an Organizational Unique Identifier (OUI) from the IEEE registry. Similarly, LoRaWAN networks are calibrated by a 24-bit globally unique identifier assigned by the LoRa Alliance.

Secure Application Loads: End-to-end encryption of LoRaWAN? application loads occur between the end device and the server.

Integrity protection by frequency hopping: Over-the-air frequency hopping is protected by the integrity provided by LoRaWAN, and frequency hopping between the network and the server is achieved by using secure transport schemes such as HTTPS and VPNs.



The High-gain External Lorawan Antenna 868 MHz 8dBi Fiberglass Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China.

C&T RF Antennas Inc provides the 15dBi Lora antenna11dBi Lora Antenna12dBi Lora antenna20dBi Lora antenna10dBi Lora antenna9dBi Lora antenna8dBi Lora antenna6dBi Lora antenna5.8dBi Lora antenna5dBi Lora antenna4dBi Lora antenna3dBi Glass Fiber Lora Antenna3dBi Lora antenna2.5dBi Lora antenna2dBi Lora antenna, etc.

We provide Lora antenna with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

C&T RF Antennas Inc provides the internal-external antennas with many radio frequency bands such as Cellular6G5G4G3GNB-IoTGNSSGPSDual-band Wifi5.8 GHz2.4 GHz169MHz230MHz315MHz433MHz868MHz915MHz LoRaUWBRFIDADS-B, etc.

The High-gain Lorawan Antenna 868 MHz 8dBi Fiberglass Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers Lorawan Antenna 868 MHz 8dBi antenna inventory, Lorawan Antenna 868 MHz 8dBi Antenna pricing, & Lorawan Antenna 868 MHz 8dBi Antenna datasheets or the other Lora antenna types.

High-gain Lorawan Antenna 868 MHz 8dBi Fiberglass Antenna Specifications

High-gain Lorawan Antenna 868 MHz 8dBi Antenna Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-8593-20600-N-8DBI
Frequency Range850-930 MHz
Gain8dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

High-gain Lorawan Antenna 868 MHz 8dBi Antenna Mechanical Specifications

Dimension20*600mm
WeightApprox. 450g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa



High-gain Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc





Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc



How do you mount a LoRa antenna?

Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



RF Lightning Arrestors RF Surge Arrestors RF Coaxial Lightning Arrestors - C&T RF Antennas Inc
RF Lightning Arrestors RF Surge Arrestors RF Coaxial Lightning Arrestors – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
