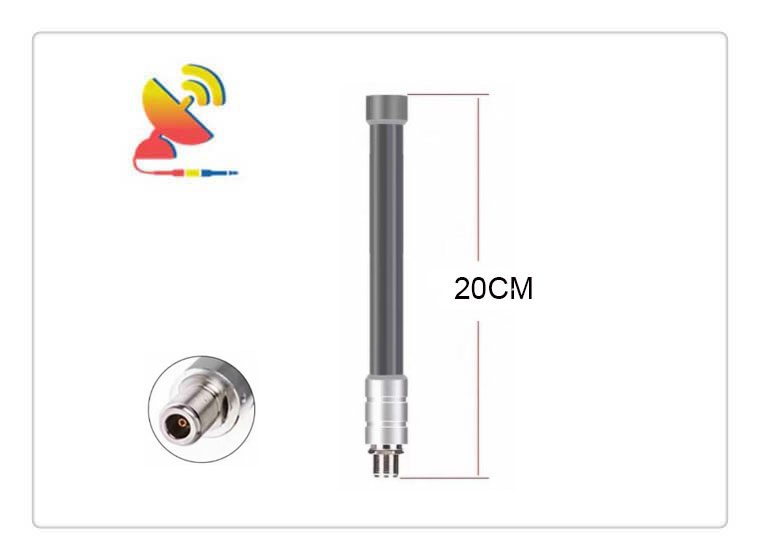

High-performance 3dBi Glass Fiber Antenna

20x200mm 3dBi Lora Antenna 3dBi Glass Fiber Antenna 3dBi Glass Fiber Lora Antenna Lora 3dBi Antenna C&T RF Antennas Inc

China 3dBi Glass Fiber Antenna Manufacturer

C&T RF Antennas Inc is the High-performance Omni 3dBi Glass Fiber Antenna Manufacturer, we provide external and internal Lora & Lorawan antennas with many antenna types.

Contact the C&T RF sales team for more High-performance Omni 3dBi Glass Fiber Antenna details.

What is a 3dBi Glass Fiber Antenna?

The High-performance 3dBi Glass Fiber Antenna CTRF-ANTENNA-FB-8593-20200-NM is a high-performance omnidirectional 3dBi fiberglass antenna Lora outdoor antenna manufactured by C&T RF Antennas Inc for outdoor LoRa Base stations. All LoRa bands are supported.

The High-performance 3dBi Glass Fiber Lora Antenna is a EU868 MHz US915 MHz Lora outdoor antenna omnidirectional antenna with 3dBi gain for LoRa & LoRaWan applications.

The LoRaWAN industry is growing rapidly

The LoRaWAN technology chain is growing and improving rapidly, especially the standard LoRaWAN technology, which has huge potential in the future IoT market. loRaWAN is a technology area that companies attach great importance to.

Simply put, the advantages of LoRaWAN are manifested in two aspects. The first aspect is its open system, including open standard specifications, global standards, strong certification procedures, etc. The second is its strong technical advantages and technical flexibility, including

Customizable wireless IoT network, FOTA, wide coverage, low power consumption (power efficient), and other technical features.

Currently, the LoRa Alliance is also growing rapidly, and more and more global players have joined the camp, including some of the industry’s giants.

C&T RF Antennas Inc also has a global presence in the LoRaWAN market, and there are two main parts here.

Global market layout: the corresponding products are opened for different countries and regions’ frequency band requirements

Vertical market segmentation solutions: customized development for the business characteristics and needs of different vertical industries, resulting in corresponding different Lora antenna design solutions.



The Outdoor Antenna High-performance Omni 3dBi Glass Fiber Antenna is manufactured by C&T RF Antennas Inc, the Lora internal antennas & Lora external antennas manufacturer in China.

Besides the High-performance Omni 3dBi Glass Fiber Antenna, C&T RF Antennas Inc also provides the 15dBi Lora antenna, 11dBi Lora antenna, 12dBi Lora antenna, 20dBi Lora antenna, 10dBi Lora antenna, 9dBi Lora antenna, 8dBi Lora antenna, 6dBi Lora antenna, 5.8dBi Lora antenna, 5dBi Lora antenna, 4dBi Lora antenna, 3dBi Lora antenna, 2.5dBi Lora antenna, 2dBi Lora antenna, etc.

We provide Lora antenna with other antenna types such as Through-hole Mount AntennasMagnetic Mount AntennasRubber Duck AntennasFiberglass AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

The High-performance Outdoor 3dBi Glass Fiber Antenna is available at C&T RF Antennas Inc. C&T RF Antennas Inc offers 3dBi Glass Fiber Antenna inventory, 3dBi Glass Fiber Antenna pricing, & 3dBi Glass Fiber Antenna datasheets, or the other Lora antennas.

High-performance 3dBi Glass Fiber Antenna Specifications

High-performance 3dBi Glass Fiber Antenna Electrical Specifications

RF Antenna TypeOmni Fiberglass Antenna
ModelCTRF-ANTENNA-FB-8593-20200-NM
Frequency Range850-930MHz
Gain3dBi
VSWR≤1.8
Impedance50 Ω
PolarizationVertical
DirectionalOmni-directional
ConnectorN-type Male
Max Power50W
Lightning ProtectionDC-Ground

High-performance 3dBi Glass Fiber Antenna Mechanical Specifications

Dimension20*200mm
WeightApprox. 200g
Radome MaterialFiberglass
Operation Temperature-20˚C ~ +85˚C
Storage Temperature-40˚C ~ +85˚C
ColorGrey
Antenna DesignDipole Array
MountingScrew
Safety Emission and otherRoHS Compliant
ApplicationsPublic Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa



High-performance Fiberglass antenna features and applications

Fiberglass Antenna Features
Fiberglass Antenna Features – C&T RF Antennas Inc
Omnidirectional Antenna Fiberglass Antenna Features
Omnidirectional Antenna Fiberglass Antenna Features – C&T RF Antennas Inc
Fiberglass Antenna Mounting Methods
Fiberglass Antenna Mounting Methods – C&T RF Antennas Inc



High-gain Omnidirectional Antenna Fiberglass Antennas
High-gain Omnidirectional Antenna Fiberglass Antennas – C&T RF Antennas Inc



Omnidirectional Antenna Fiberglass Antenna Applications
Omnidirectional Antenna Fiberglass Antenna Applications – C&T RF Antennas Inc
